Masked Input

A Masked Input field is a special input that visually obfuscates characters to protect sensitive information by masking them with a circular shape.

Usage

When to use

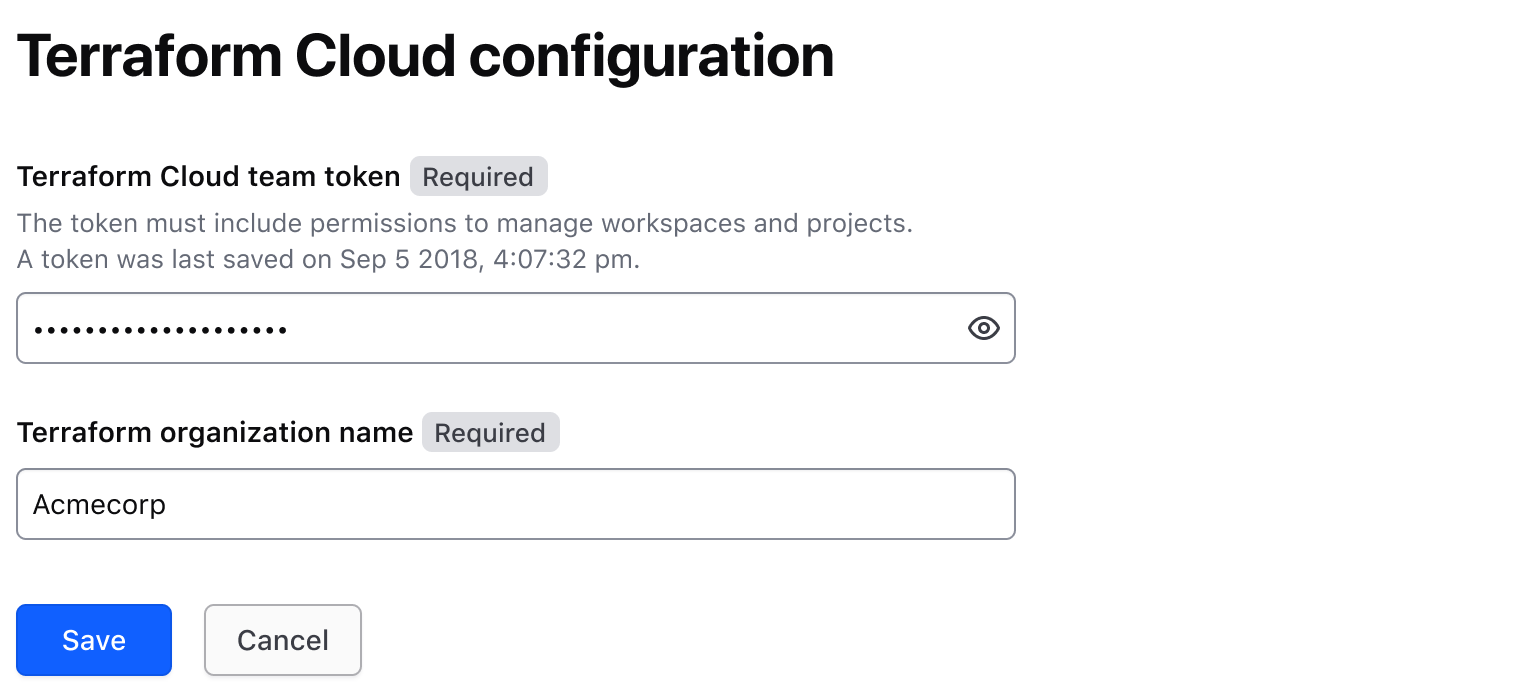

• To give users a way to show and hide sensitive information.

• When a form input with the ability to mask its value temporarily is needed.

When not to use

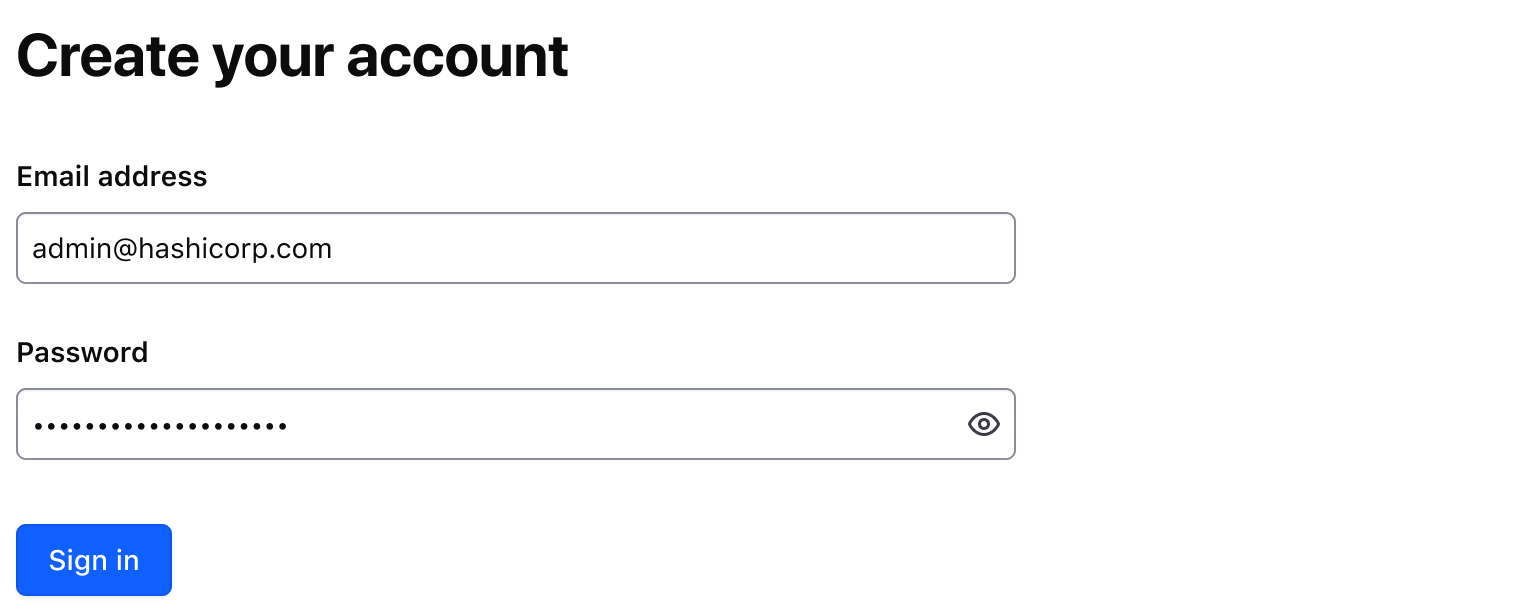

• For passwords, use the Password input instead.

• For general textual input, use the TextInput or Textarea.

Masked input vs Password input

The Masked Input is a text field designed to protect sensitive or confidential information while allowing users to show or hide the input value as needed.

The password input is a specific type of form control designed for the secure entry of passwords. The value is always masked or hidden to prevent others from reading the entered characters easily. Unlike the Masked Input, the password input has specific attributes to enhance the security and confidentiality of passwords.

Usage examples

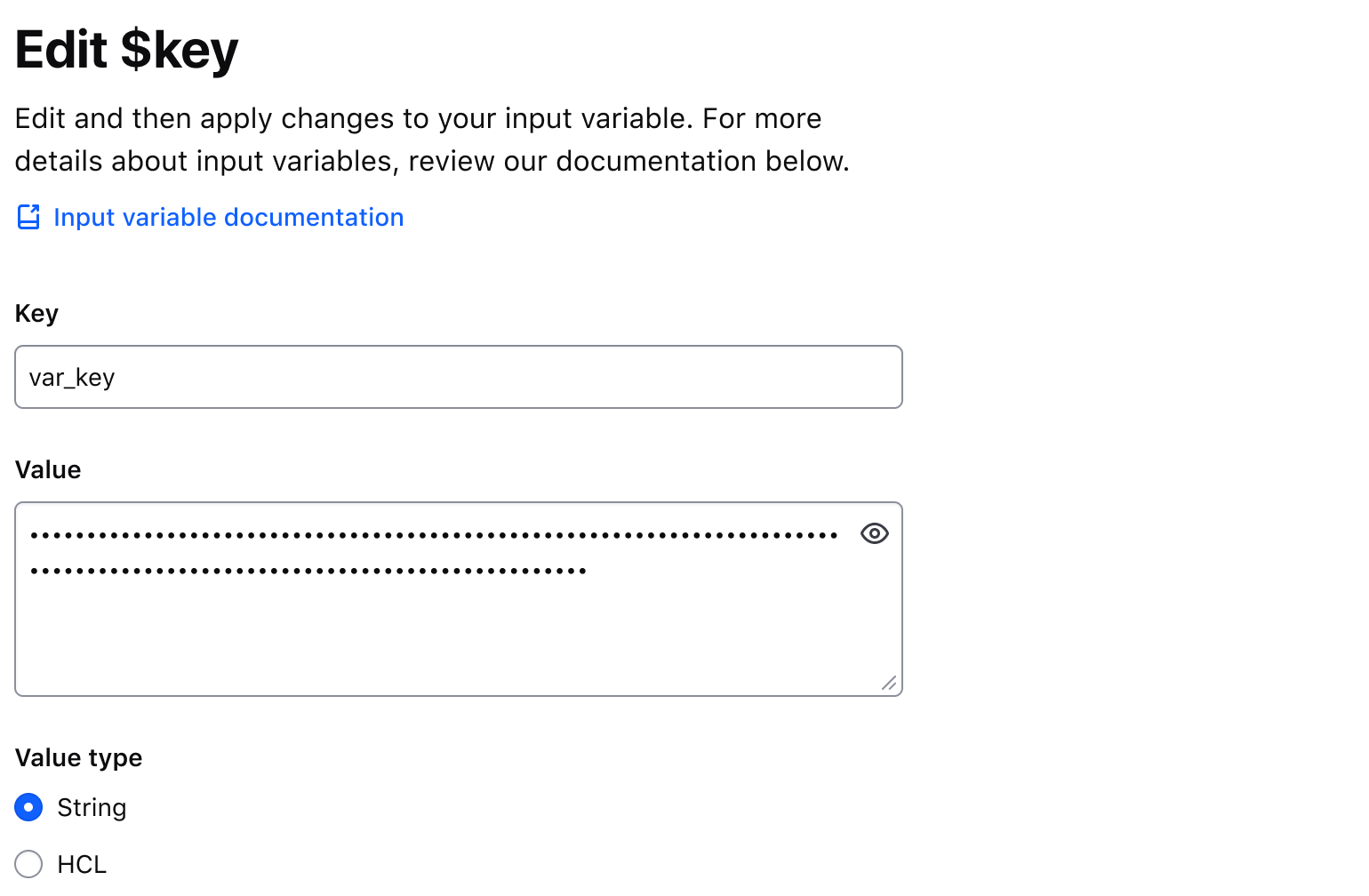

Multiline

Use isMultiline to display multiline textual content. e.g., a Terraform variable. This property replaces the TextInput with a Textarea field.

Required and optional

For complex forms, indicate required fields. This is the most explicit and transparent method and ensures users don’t have to make assumptions. Read more about best practices for marking required fields in forms.

For shorter, simpler forms, indicate optional fields instead.

Copying the Masked Input value

Setting the hasCopyButton property to true will display a Copy Button adjacent to the Masked Input, allowing users to copy the value in the Masked Input to their clipboard. Refer to the Copy Button usage guidelines for more details around copying content.

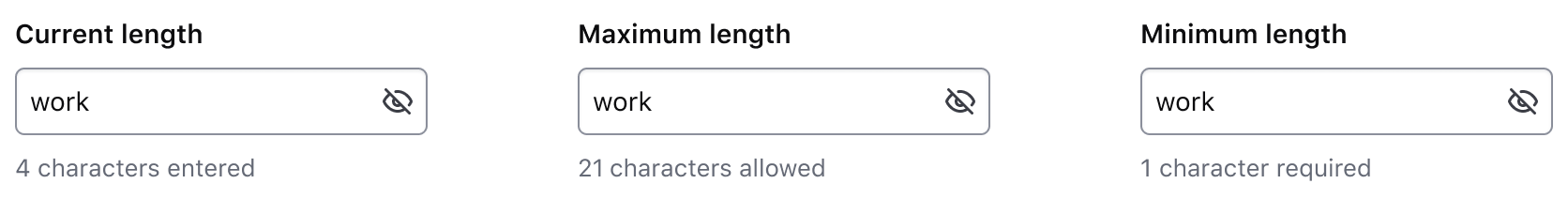

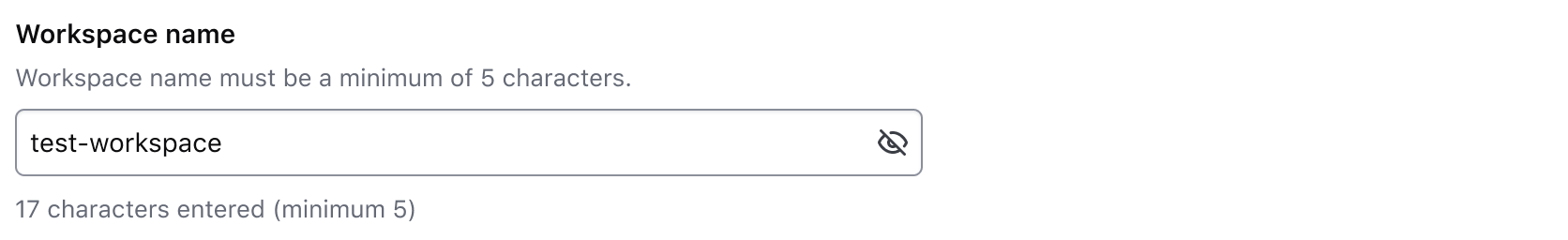

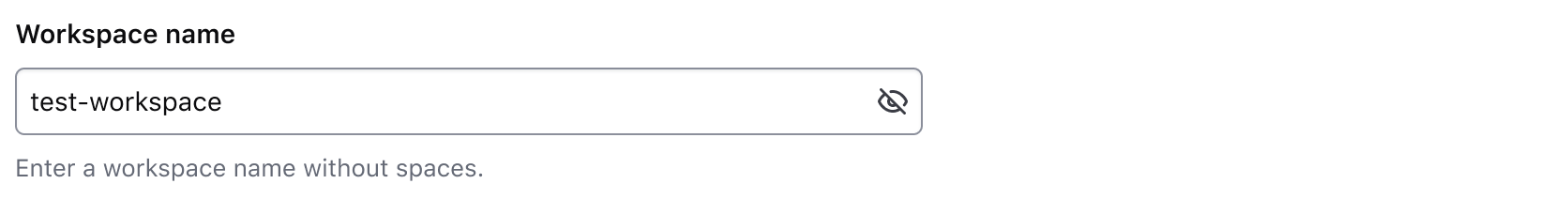

Character count

For tracking the number of characters entered into a MaskedInput and defining requirements around minimum and maximum length, refer to the Character count documentation.

Error validation

For error validation recommendations, refer to the Form patterns documentation.

Content

For high-level content recommendations, refer to our Primitives documentation.

How to use this component

There are two ways to use the Masked Input component:

• Form::MaskedInput::Base - the base component: the input control with a toggle button.
• Form::MaskedInput::Field - the field component: the input control with a toggle button, a label, helper text, and error messaging (in a wrapping container).

We recommend using the Field component as it provides built-in accessibility functionality. Use the Base component to achieve custom layouts or for special use cases not covered by the Field component.

Form::MaskedInput::Field

The basic invocation requires a Label. This creates:

• a <label> element with a for attribute automatically associated with the input ID attribute.
• a <input type="text"> or a <textarea> control with an automatically generated ID attribute.

<Hds::Form::MaskedInput::Field name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

Input value

Pass a @value argument to pre-populate the input. By default, the content is visually obfuscated ("masked") and users can make it visible using the associated toggle button.

<Hds::Form::MaskedInput::Field
  @value="036215df4996ca649928d8864b4df9e42cba0d6d"
  name="demo-team-token"
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

If you need to make the content visible by default or control the masking from outside the component, use the @isContentMasked argument.

<Hds::Form::MaskedInput::Field
  @isContentMasked={{false}}
  @value="036215df4996ca649928d8864b4df9e42cba0d6d"
  name="demo-team-token"
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

Multiline

Set @isMultiline argument to true to render a <textarea>

<Hds::Form::MaskedInput::Field
  @isMultiline={{true}}
  @value="-----BEGIN RSA PRIVATE KEY-----
MIIBOgIBAAJBAKj34GkxFhD90vcNLYLInFEX6Ppy1tPf9Cnzj4p4WGeKLs1Pt8Qu
KUpRKfFLfRYC9AIKjbJTWit+CqvjWYzvQwECAwEAAQJAIJLixBy2qpFoS4DSmoEm
o3qGy0t6z09AIJtH+5OeRV1be+N4cDYJKffGzDa88vQENZiRm0GRq6a+HPGQMd2k
TQIhAKMSvzIBnni7ot/OSie2TmJLY4SwTQAevXysE2RbFDYdAiEBCUEaRQnMnbp7
9mxDXDf6AU0cN/RPBjb9qSHDcWZHGzUCIG2Es59z8ugGrDY+pxLQnwfotadxd+Uy
v/Ow5T0q5gIJAiEAyS4RaI9YG8EWx/2w0T67ZUVAw8eOMB6BIUg0Xcu+3okCIBOs
/5OiPgoTdSy7bcF9IGpSE8ZgGKzgYQVZeN97YE00
-----END RSA PRIVATE KEY-----"
  name="demo-private-key"
  as |F|
>
  <F.Label>Private key</F.Label>
</Hds::Form::MaskedInput::Field>

Copy button

To allow users to copy the input value to their clipboard, set the @hasCopyButton argument to true.

<Hds::Form::MaskedInput::Field
  @hasCopyButton={{true}}
  @value="036215df4996ca649928d8864b4df9e42cba0d6d"
  name="demo-team-token"
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

Helper text

You can add extra information to the field using helper text. When helper text is added, the component automatically adds an aria-describedby attribute to the input control, associating it with the automatically generated ID of the helper text element.

<Hds::Form::MaskedInput::Field
  @value="036215df4996ca649928d8864b4df9e42cba0d6d"
  name="demo-team-token"
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.HelperText>The token must include permissions to manage workspaces and projects.</F.HelperText>
</Hds::Form::MaskedInput::Field>

Extra content in label and helper text

The Label and HelperText contextual components used in the Field component yield their content. This means you can also pass structured content.

<Hds::Form::MaskedInput::Field name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token <Hds::Badge @size="small" @text="Beta" /></F.Label>
  <F.HelperText>The token must include <Hds::Link::Inline @href="#">permissions to manage workspaces and projects</Hds::Link::Inline>.</F.HelperText>
</Hds::Form::MaskedInput::Field>

Required vs. optional

Use the @isRequired and @isOptional arguments to add a visual indication that the field is "required" or "optional".

<Hds::Form::MaskedInput::Field @isRequired={{true}} name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.HelperText>The token must include permissions to manage workspaces and projects.</F.HelperText>
</Hds::Form::MaskedInput::Field>
<br />
<Hds::Form::MaskedInput::Field @isOptional={{true}} name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.HelperText>The token must include permissions to manage workspaces and projects.</F.HelperText>
</Hds::Form::MaskedInput::Field>

Character count

If the user input needs to be limited to a certain number of characters, use @maxLength on a CharacterCount contextual component to guide the user in meeting the length requirements. This property does not restrict the users from entering characters over the limit. To define the maximum string length that the user can enter, set maxlength attribute on the associated input field.

<Hds::Form::MaskedInput::Field
  @value={{this.value1}}
  name="demo-team-token"
  {{on "input" (fn this.updateValue "value1")}}
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.CharacterCount @maxLength={{40}}/>
</Hds::Form::MaskedInput::Field>

If the user input is required to have a certain number of characters, use @minLength on a CharacterCount contextual component to guide the user in meeting the length requirements.

<Hds::Form::MaskedInput::Field
  @value={{this.value2}}
  name="demo-team-token"
  {{on "input" (fn this.updateValue "value2")}}
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.CharacterCount @minLength={{30}}/>
</Hds::Form::MaskedInput::Field>

When the user input needs to be in a certain range, use both @minLength and @maxLength on a CharacterCount contextual component to guide the user in meeting the length requirements.

<Hds::Form::MaskedInput::Field
  @value={{this.value3}}
  name="demo-team-token"
  {{on "input" (fn this.updateValue "value3")}}
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.CharacterCount @minLength={{30}} @maxLength={{40}}/>
</Hds::Form::MaskedInput::Field>

Custom message

For custom messages, you can use the following arguments to build a relevant message: currentLength (the current number of characters in the associated form control), maxLength (the maximum number of characters allowed in the associated form control), minLength (the minimum number of characters required in the associated form control), remaining (the difference between maxLength and currentLength), and shortfall (the difference between currentLength and minLength).

<Hds::Form::MaskedInput::Field
  @value={{this.value4}}
  name="demo-team-token"
  {{on "input" (fn this.updateValue "value4")}}
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.CharacterCount @maxLength={{40}} as |CC|>
    {{CC.remaining}} characters remaining
  </F.CharacterCount>
</Hds::Form::MaskedInput::Field>

Validation based on length

You can raise an error based on the number of characters entered into a field using a custom validation function.

  <Hds::Form::MaskedInput::Field
    @value={{this.value5}}
    @isInvalid={{this.fieldIsInvalid}}
    name="demo-team-token"
    {{on "input" (fn this.updateValue "value5")}}
    as |F|
  >
    <F.Label>Terraform Cloud team token</F.Label>
    <F.CharacterCount @minLength={{this.minLength}}/>
    {{#if this.fieldIsInvalid}}
      <F.Error>Length should be at least 40 characters</F.Error>
    {{/if}}
  </Hds::Form::MaskedInput::Field>

Validation

To indicate a field is invalid, use the @isInvalid argument and provide an error message using the Error contextual component.

<Hds::Form::MaskedInput::Field
  @isInvalid={{true}}
  name="demo-team-token"
  @value="036215df4996ca649928d8864b4df9e42cba0d6d"
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.Error>The provided token is not valid</F.Error>
</Hds::Form::MaskedInput::Field>

Add more than one error message using the more specific Message contextual component.

<Hds::Form::MaskedInput::Field
  @isInvalid={{true}}
  name="demo-team-token"
  @value="036215df4996c649928d8864b4"
  as |F|
>
  <F.Label>Terraform Cloud team token</F.Label>
  <F.Error as |E|>
    <E.Message>Length should be at least 40 characters</E.Message>
    <E.Message>Should not contain special characters or spaces</E.Message>
  </F.Error>
</Hds::Form::MaskedInput::Field>

Custom control ID

If needing a custom ID for the control instead of the one automatically generated by the component, pass the @id argument to the field.

<Hds::Form::MaskedInput::Field @id="tfc-token" name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

Additional aria-describedby

Pass an @extraAriaDescribedBy argument to the field to connect one or more extra elements describing the field to the control. This provides extra ID values to the aria-describedby attribute of the control, in addition to those automatically generated by the component.

<Hds::Form::MaskedInput::Field @extraAriaDescribedBy="my-extra-element-ID" name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

HTML native attributes

This component supports use of ...attributes. This means you can use all the standard HTML attributes of the input control element. This can be useful in case you want to add specific native behaviors to the field, that are not exposed directly by the component (e.g., providing a name for the control, or adding min, max, minlength, maxlength, or pattern attributes to it).

<Hds::Form::MaskedInput::Field name="demo-tfc-token" minlength="40" maxlength="40" name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

Events handling

This component supports the use of ...attributes, which allows you to use all the usual Ember techniques for event handling (e.g., input, blur, change), validation, etc.

<Hds::Form::MaskedInput::Field name="demo-team-token" {{on "blur" this.yourOnBlurFunction}} as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

Custom width

By default, the input control width is set to fill the parent container.

Pass a custom width for the control using the @width argument.

<Hds::Form::MaskedInput::Field @width="250px" name="demo-team-token" as |F|>
  <F.Label>Terraform Cloud team token</F.Label>
</Hds::Form::MaskedInput::Field>

Form::MaskedInput::Base

The Base component is intended for rare cases where the Field component can’t be used and a custom implementation is needed. Most of the details for the Field component also apply to the Base component, but see the Component API for more details.

The default invocation creates a <input type="text"> or a <textarea> control with an automatically generated ID attribute.

<Hds::Form::MaskedInput::Base
  @value="036215df4996ca649928d8864b4df9e42cba0d6d"
  aria-label="Terraform Cloud team token"
  name="demo-team-token"
/>

When the @isMultiline argument is set to true, it creates a <textarea> control with an automatically generated ID attribute. You can also adjust the height of <textarea> either by using the rows attribute or by setting a custom @height value.

<Hds::Form::MaskedInput::Base
  @value="-----BEGIN RSA PRIVATE KEY-----
MIIBOgIBAAJBAKj34GkxFhD90vcNLYLInFEX6Ppy1tPf9Cnzj4p4WGeKLs1Pt8Qu
KUpRKfFLfRYC9AIKjbJTWit+CqvjWYzvQwECAwEAAQJAIJLixBy2qpFoS4DSmoEm
o3qGy0t6z09AIJtH+5OeRV1be+N4cDYJKffGzDa88vQENZiRm0GRq6a+HPGQMd2k
TQIhAKMSvzIBnni7ot/OSie2TmJLY4SwTQAevXysE2RbFDYdAiEBCUEaRQnMnbp7
9mxDXDf6AU0cN/RPBjb9qSHDcWZHGzUCIG2Es59z8ugGrDY+pxLQnwfotadxd+Uy
v/Ow5T0q5gIJAiEAyS4RaI9YG8EWx/2w0T67ZUVAw8eOMB6BIUg0Xcu+3okCIBOs
/5OiPgoTdSy7bcF9IGpSE8ZgGKzgYQVZeN97YE00
-----END RSA PRIVATE KEY-----"
  @isMultiline={{true}}
  rows="5"
  aria-label="Private key"
  name="demo-team-token"
/>

Component API

The Masked Input component has two different variants with their own APIs:

• Form::MaskedInput::Base - the base component: the input control
• Form::MaskedInput::Field - the field parent component: the input control with label, helper text, and error messaging (in a wrapping container)

Form::MaskedInput::Base

Form::MaskedInput::Field

Contextual components

Label, HelperText, CharacterCount, and Error content are passed to the field as yielded components.

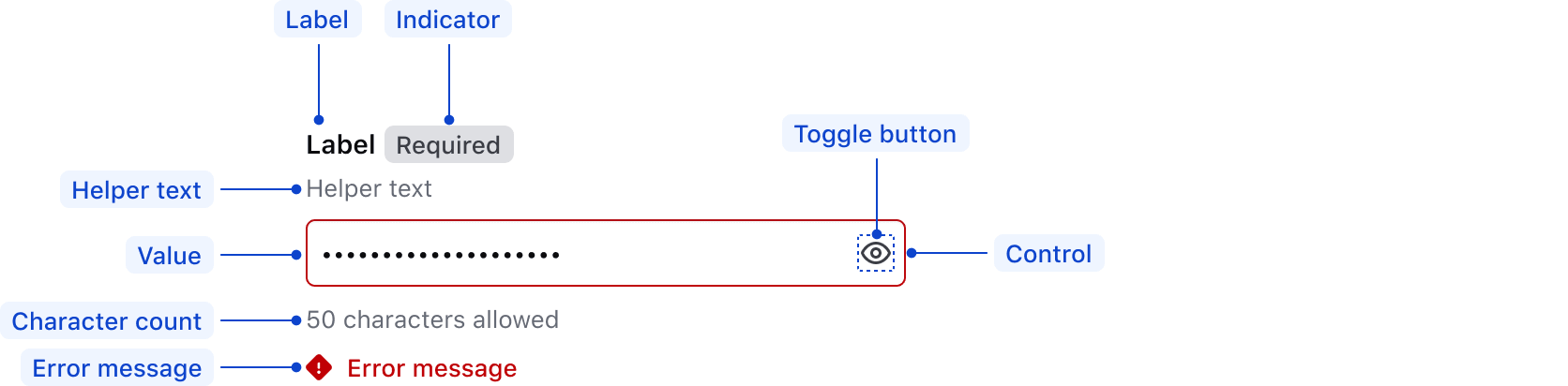

Anatomy

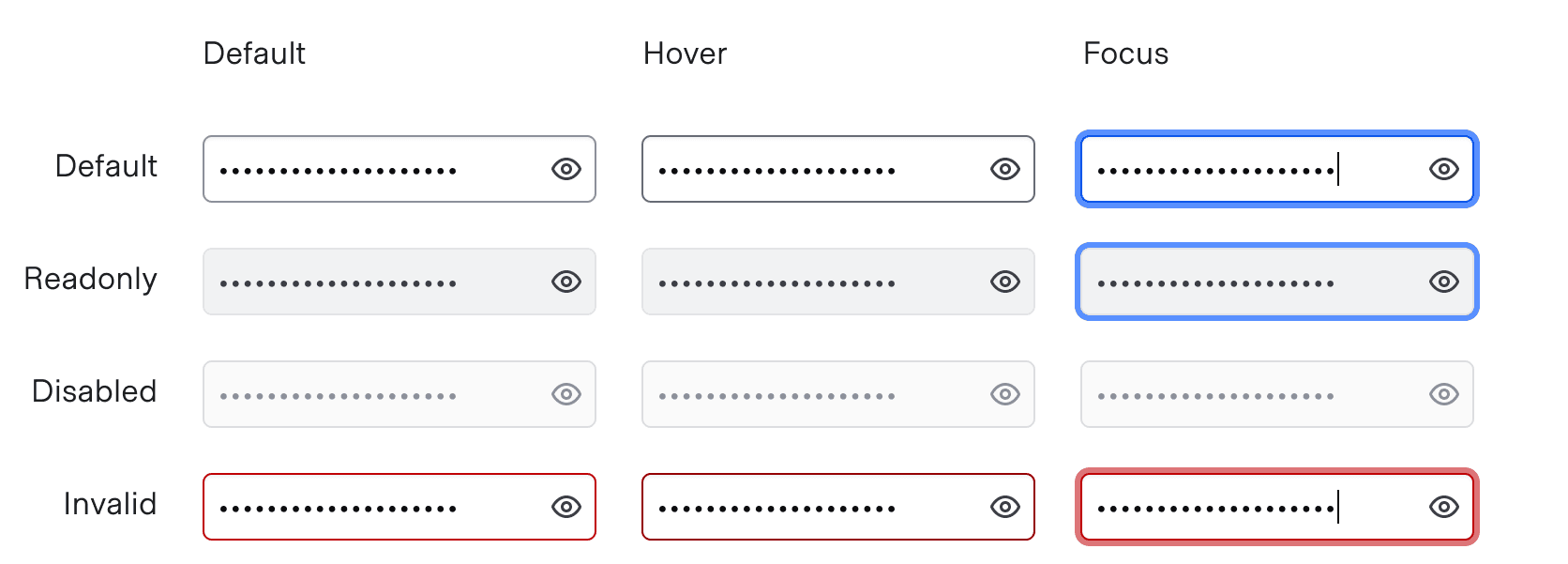

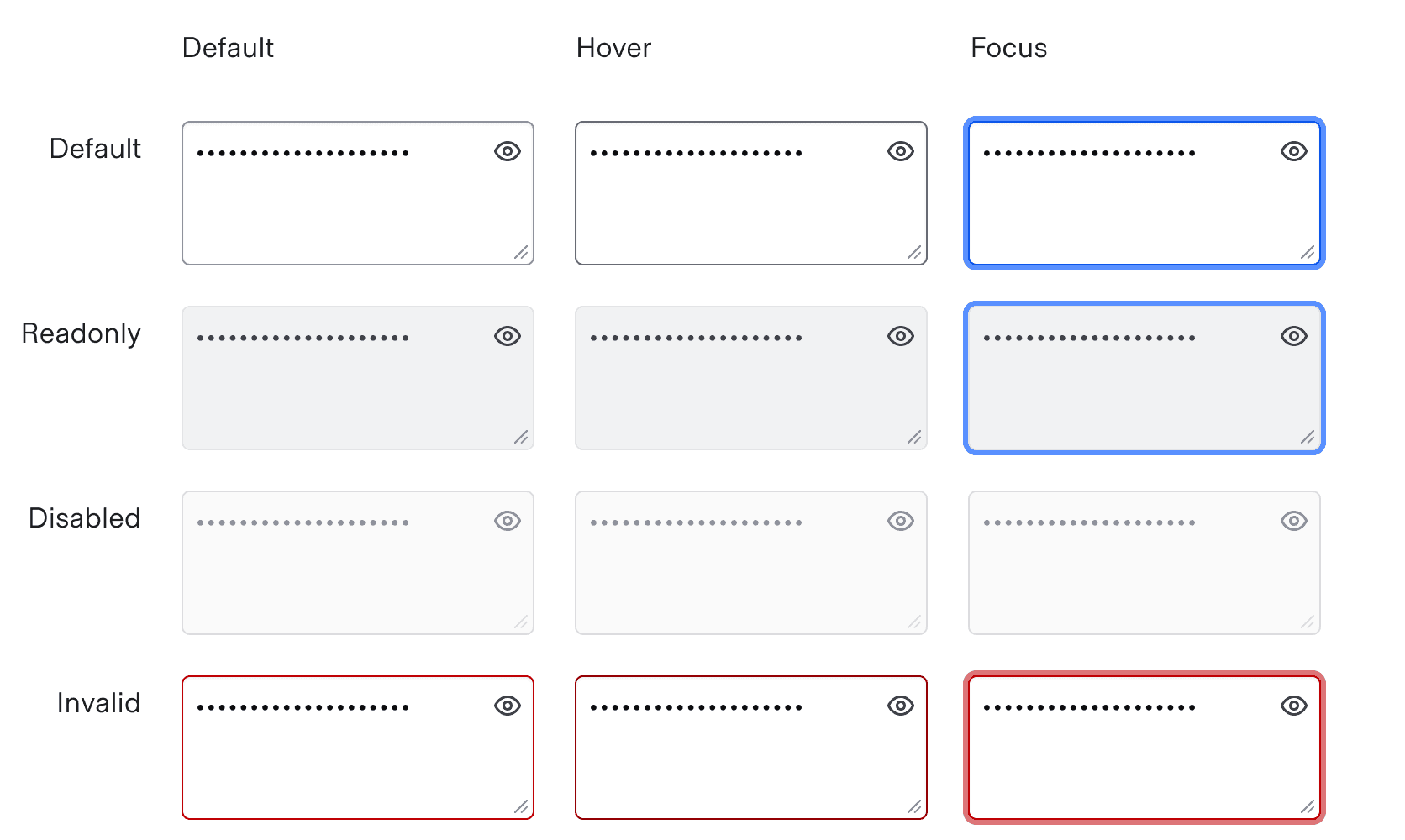

States

isMultiline

Keyboard navigation

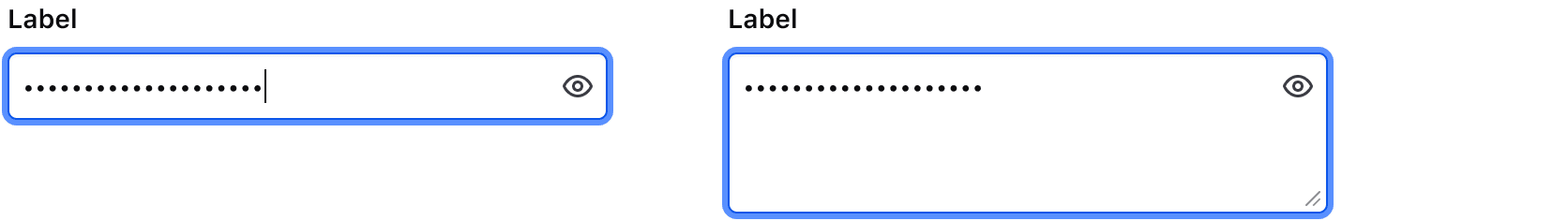

Focus on the input

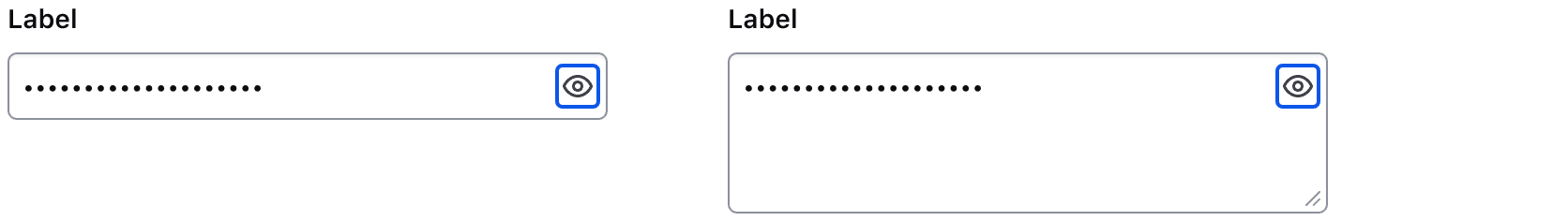

Move focus to the toggle button

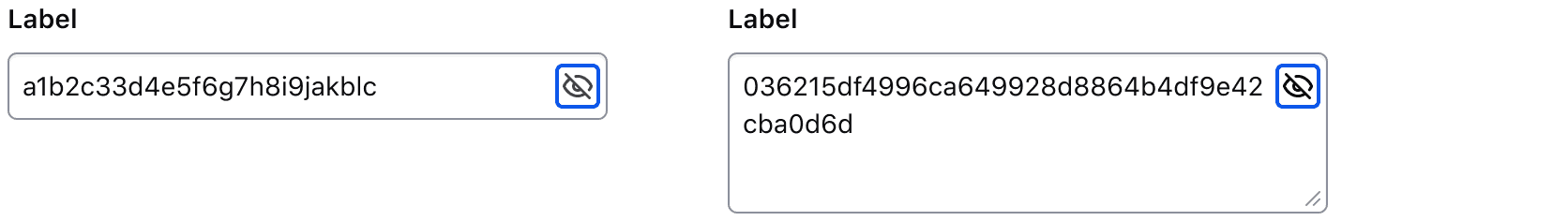

Activates toggle to show/hide the input value

Conformance rating

Form::MaskedInput::Field

Form::MaskedInput::Field is conformant when used as directed. For this reason, we recommend using Form::MaskedInput::Field when possible.

Form::MaskedInput::Base

Form::MaskedInput::Base is not conformant until it has an accessible name.

Known issues

If a link is used within a label, helper text, or error text, it will not be presented as a link to the user with a screen reader; only the text content is read out. As such, care should be used when considering this feature.

Applicable WCAG Success Criteria

This section is for reference only, some descriptions have been truncated for brevity. This component intends to conform to the following WCAG Success Criteria:

Support

If any accessibility issues have been found within this component, let us know by submitting an issue.
