Page Header

An informational element that displays the title of the page, relevant metadata, and page-level actions.

The Page Header is a presentational component that displays the main title of a page, breadcrumb, page metadata, and page-level actions.

Usage

When to use

  • To display the title or topmost heading within a page.
  • To communicate metadata pertaining to the page; e.g., status, description, subtitle, etc.
  • To highlight page-level actions and functions.

When not to use

  • To communicate page-level information anywhere other than the top of the page.

Title

Displays the title or topmost heading of the page. We recommend not exceeding 50 characters in length, but in the case of a longer value (e.g., a user or automatically generated value) the title will wrap to multiple lines.

The Page Header renders the title as an <h1> element. Ensure this is the only <h1> on the page, as more than one <h1> can confuse screen readers and impact the semantic hierarchy of the page.

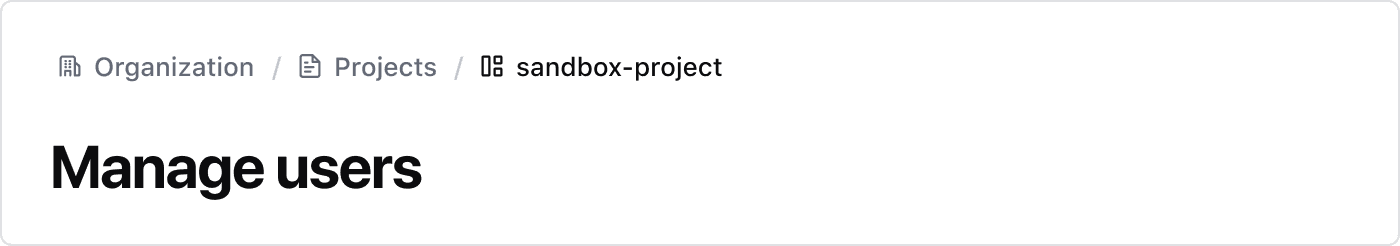

Displays a Breadcrumb to communicate the application hierarchy and location to the user.

Page Header Breadcrumb

Multiple Breadcrumb components

The Breadcrumb uses a landmark <nav> element. Ensure that there is only one Breadcrumb on the page, or differentiate between Breadcrumbs by passing them different ariaLabel arguments. Refer to the Breadcrumb API for more details.

Icon Tile

Displays a Helios IconTile as a visual indicator for the content of the page, object, or product branding.

Page Header Icon Tile

For consistency and to avoid competing visually with the title, only the medium size of the IconTile is supported in the Page Header.

Badges

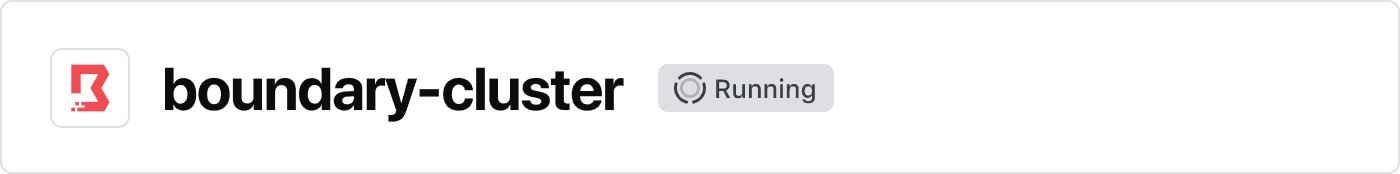

Displays Helios Badges to communicate high-priority metadata like the status of the page and metadata that is subject to change. We recommend using a maximum of three Badges within the Page Header and prioritizing the most contextually relevant metadata.

Page Header Badges

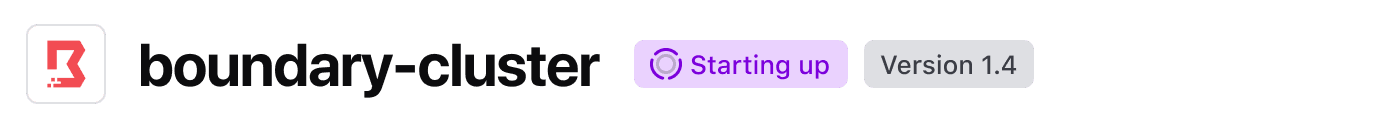

Do

Use badges to express similar or related metadata pertaining to the page content.

Page Header Badges Metadata

Don’t

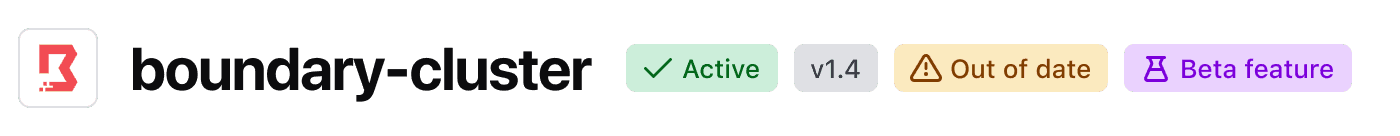

Don’t use more than three badges within the Page Header, instead explore ways to express additional metadata in the customMetadata area or move the content to the main page.

Page Header Badges Metadata

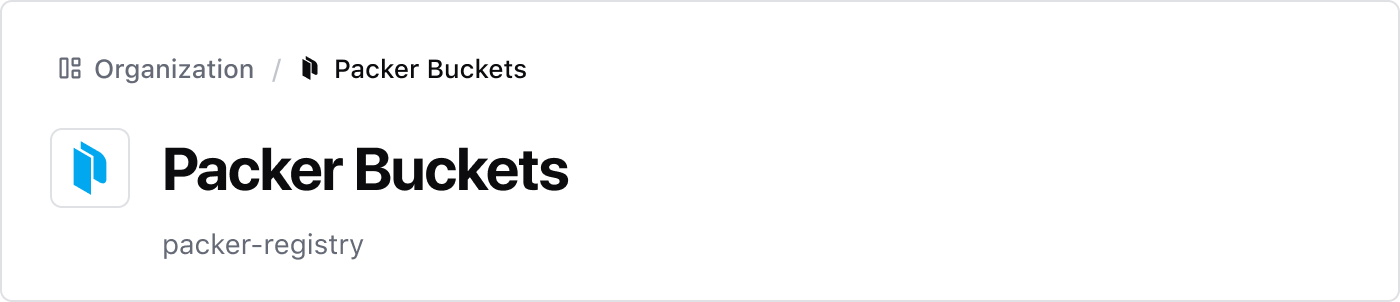

Subtitle

Displays a subtitle beneath the title to communicate metadata that does not change frequently or is not subject to changes within the application. Common examples of this are organization name, project name, unique IDs, resource names, etc.

Page Header Subtitle

Don’t

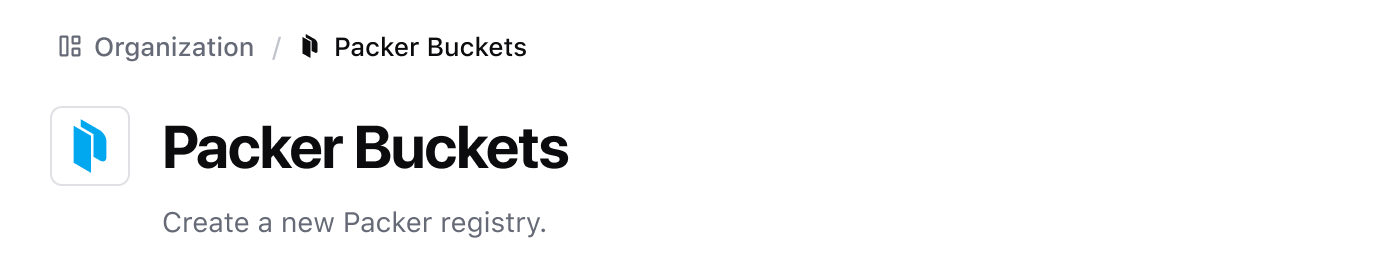

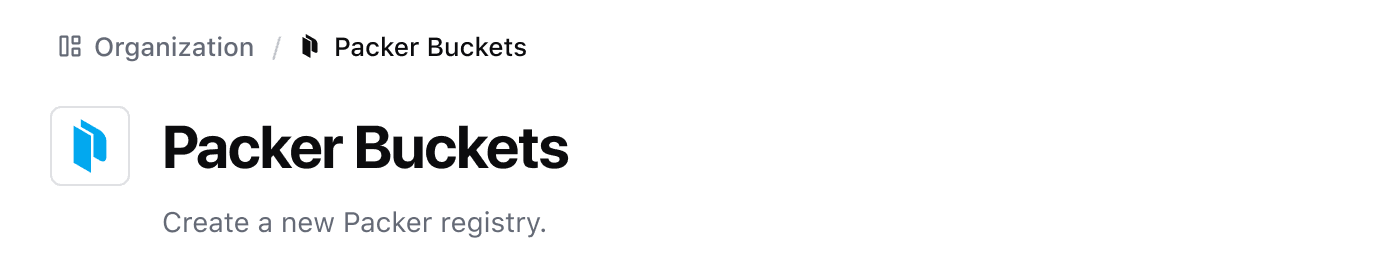

Don’t use full sentences in the subtitle, use a description instead.

Page Header Full Sentence Subtitle

Description

Displays a description beneath the title and subtitle to communicate more detailed information about the page, link out to external documentation and resources, and capture more generic information about the page. Not all pages need a description, especially if the title is explicit enough.

We recommend limiting the Page Header description to 1–2 sentences. If a longer description is required, consider linking to external documentation or moving more detailed content to an interstitial component like a Flyout.

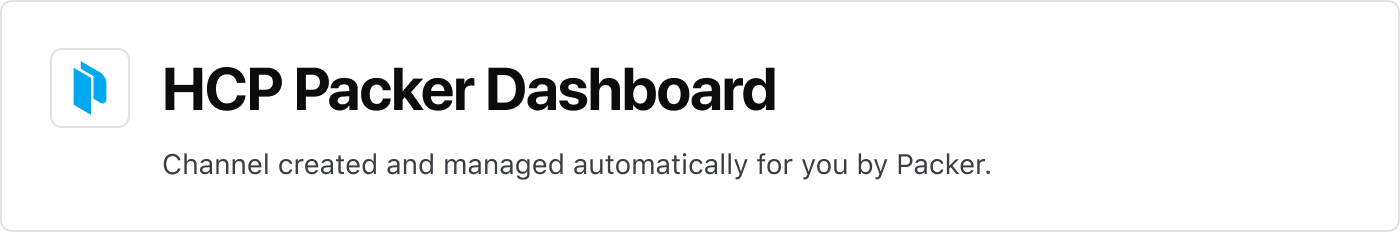

Page Header Description

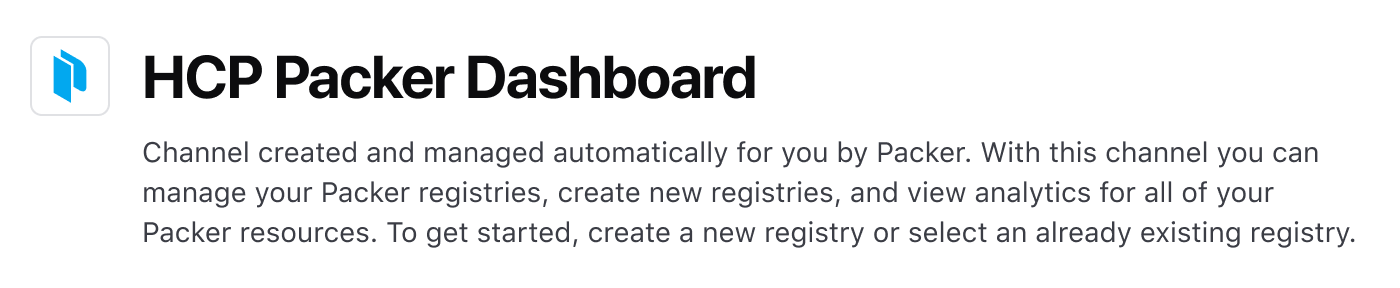

Don’t

Don’t include overly complex details, long-form content, or instructions in the description. This can add too much visual weight to the Page Header and can detract from the content on the main page.

Page Header Long Form Description

Do

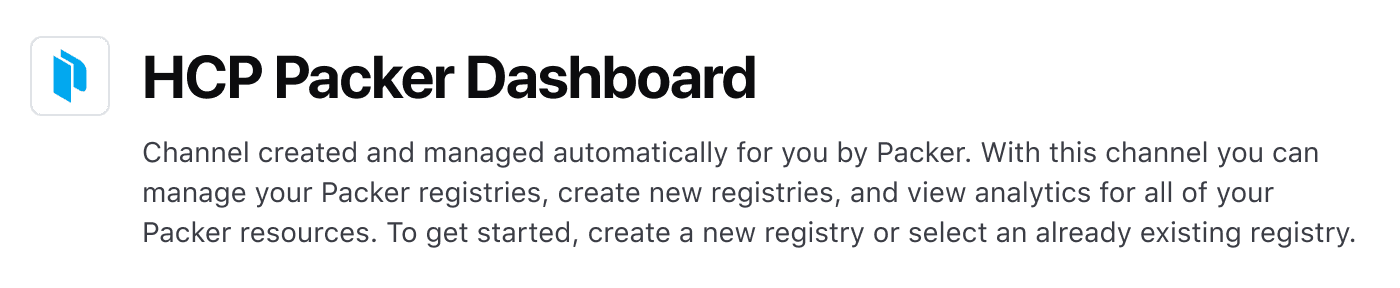

Instead, link to more complex content using an Inline Link with an optional icon to indicate the scope of the link (internal resource, external resource, etc).

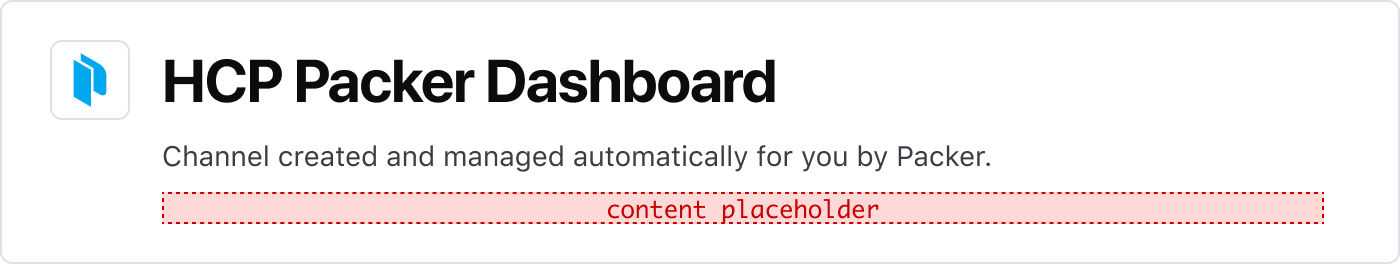

HCP Packer Dashboard

Hand-off note: Nesting a Link Inline with an icon inside of the description is not supported in the Figma component. Instead, override the description text with the correct text style and color, and ensure that this detail is accounted for in the engineering hand-off.

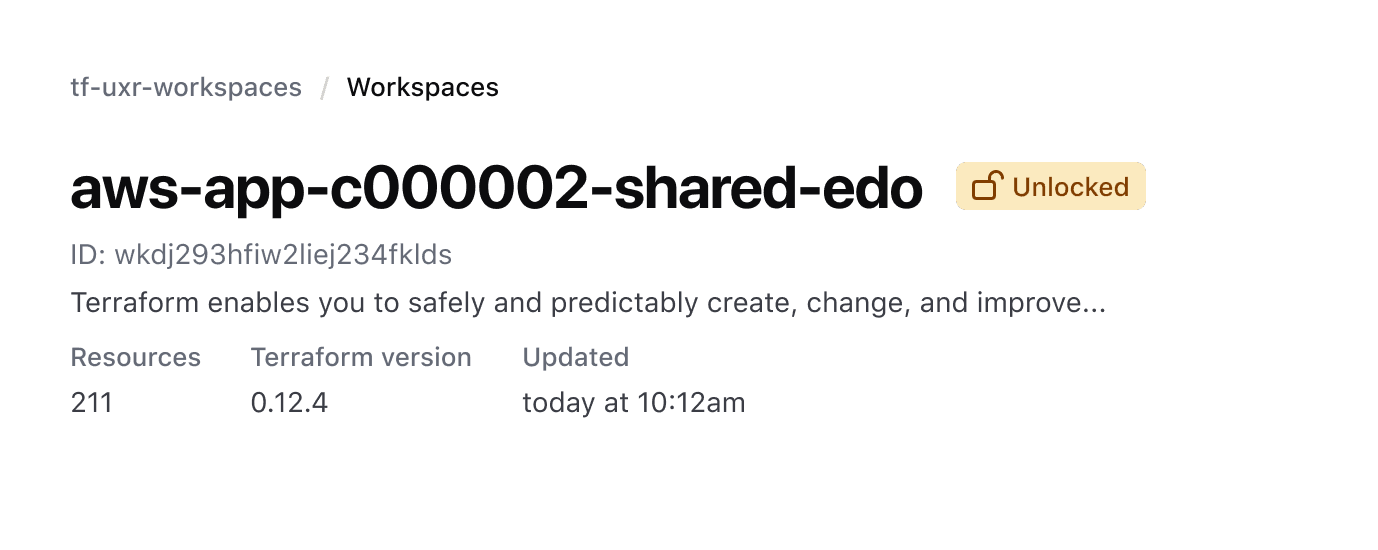

Custom metadata

If necessary to include metadata like key/value pairs, multiple page-level statuses, or other structured content, custom metadata can be passed to the component via the customMetadata property in Figma.

Page Header custom metadata

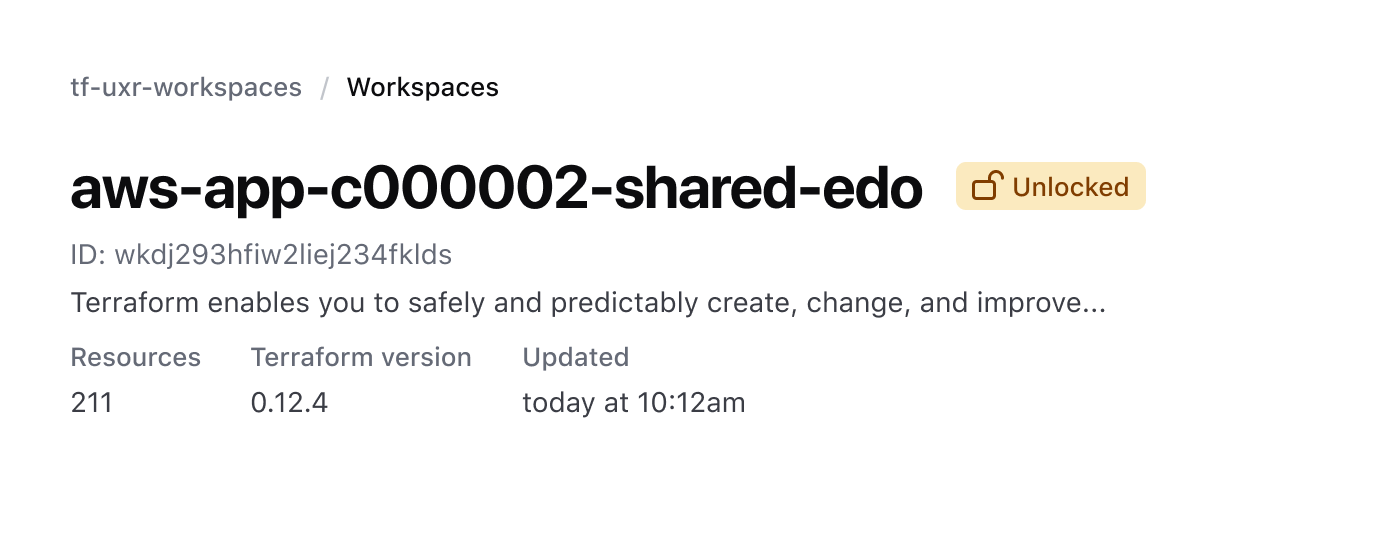

Key/value pairs as custom metadata

Representing metadata with a set of key/value pairs is common in HashiCorp products and can be useful when communicating relational information between products, versioning, and other structured data.

Custom metadata key/value pairs

Don’t

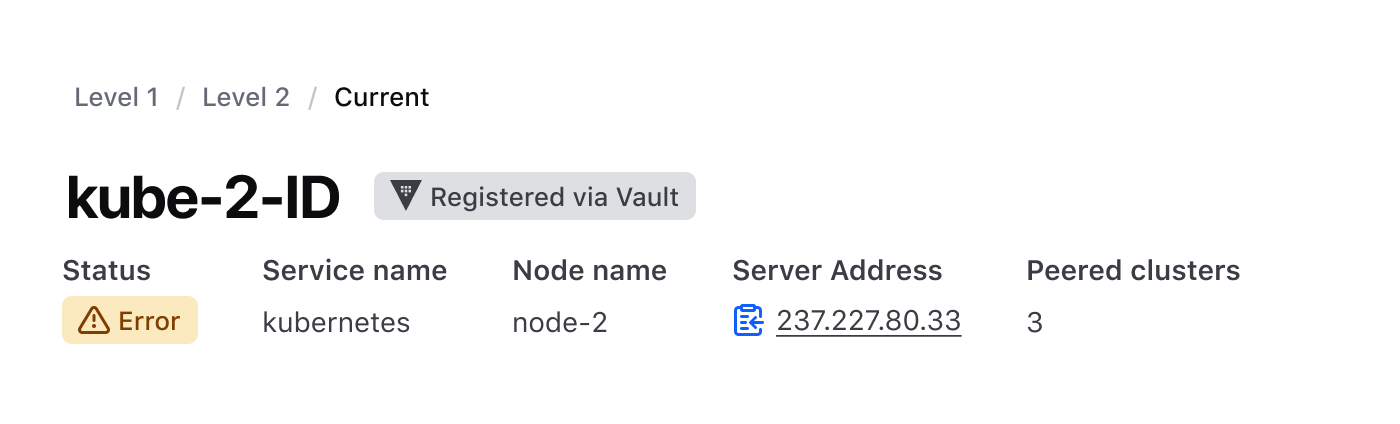

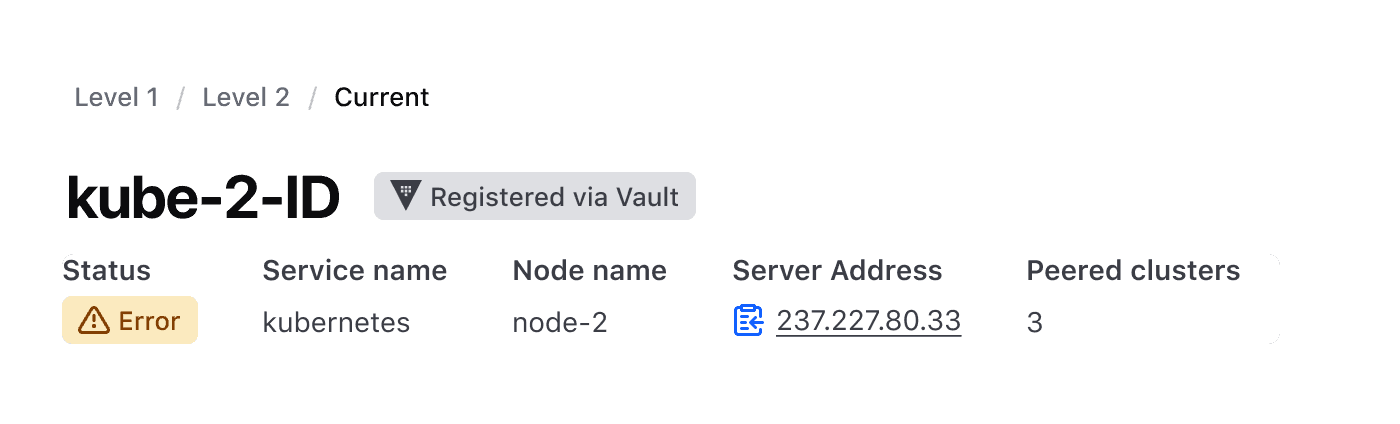

We recommend not exceeding more than four key/value pairs; this can result in unnecessarily complex content within the Page Header. Instead, move this content to the page.

Complex metadata dont

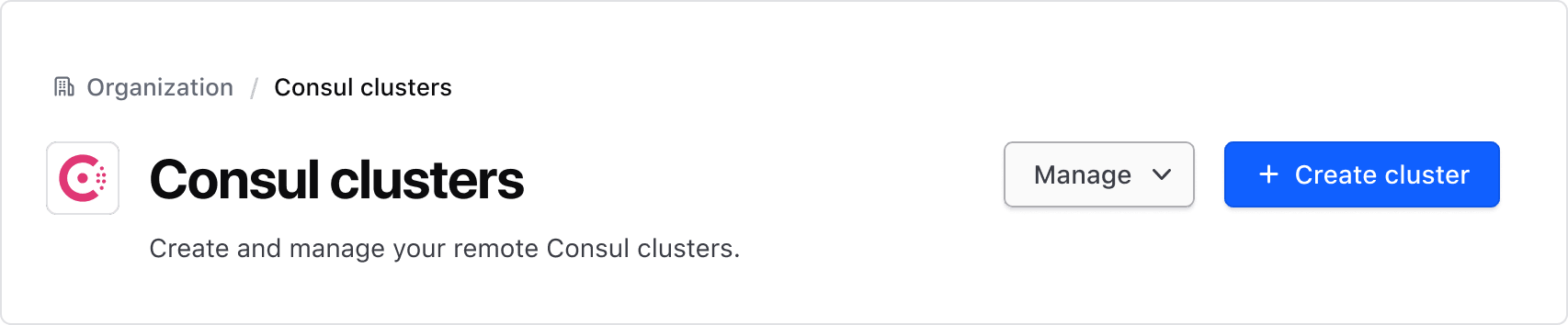

Actions

Use Buttons and Dropdowns in the Page Header to highlight functions and actions that impact the page as a whole. Examples of this include:

  • Creating new objects that are listed within the page.
  • Surfacing management details like connecting to an API.
  • Pausing or refreshing a service pertaining to the page.

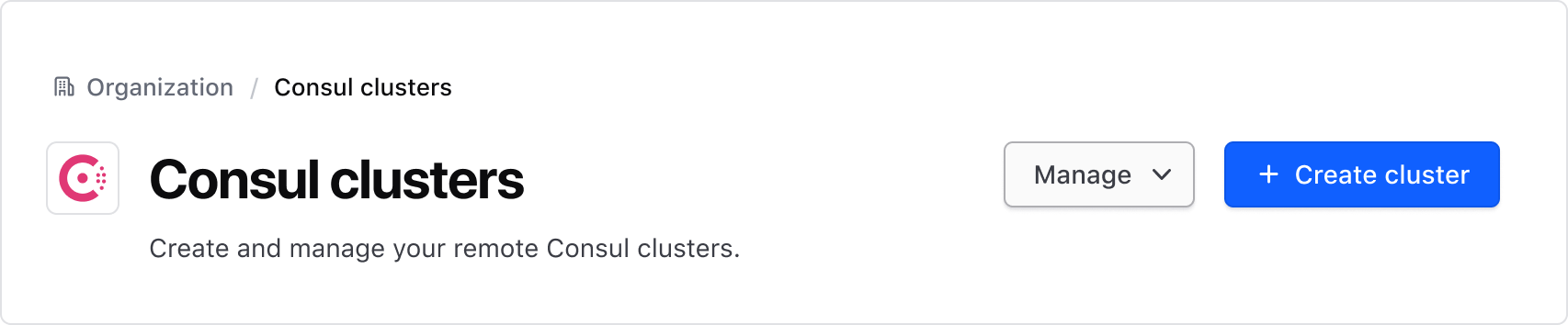

Page Header Actions

Primary button

Use a primary Button in the Page Header to highlight the most important flow or action on the page. Examples of this include:

  • A flow that creates an object that is related to the page, e.g., creating a new cluster or adding a new user.
  • Launching or deploying a specific product instance.

Secondary button

Use a secondary Button in the Page Header when highlighting actions that are less important than the primary action, such as editing the content on a page, managing access, etc.

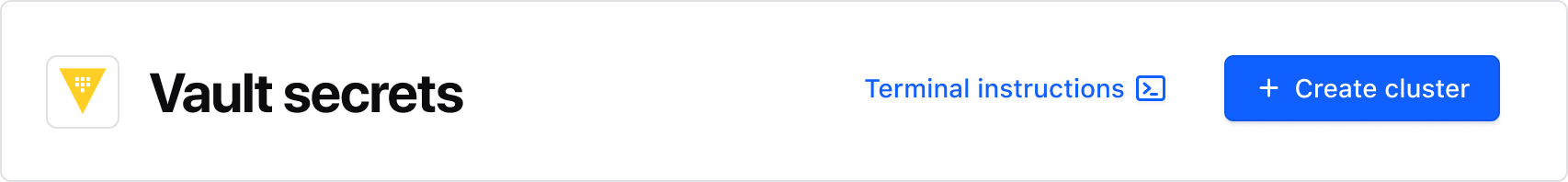

Tertiary button

A tertiary Button should be used sparingly in the Page Header, but can be used to highlight low-priority actions like terminal instructions or to trigger a component like a Flyout to enhance the content on the main page.

Depending on the intended function, consider consolidating a tertiary Button into a Dropdown.

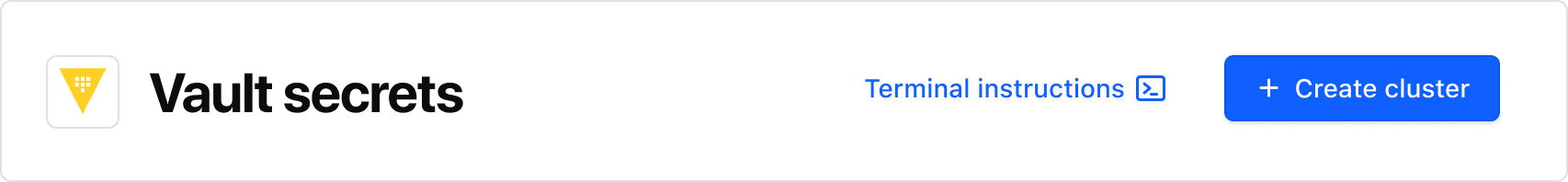

Page Header Actions Tertiary Button

Use a Dropdown in the Page Header to combine multiple secondary functions, tasks, or elements that assist the user in managing the information or objects on the page. Examples of this include:

  • Copying API credentials to manage the object remotely.
  • Editing or changing settings.
  • Deleting or deactivating an object.
  • Linking to documentation.

When used in these scenarios and paired with a primary button, use a secondary Dropdown.

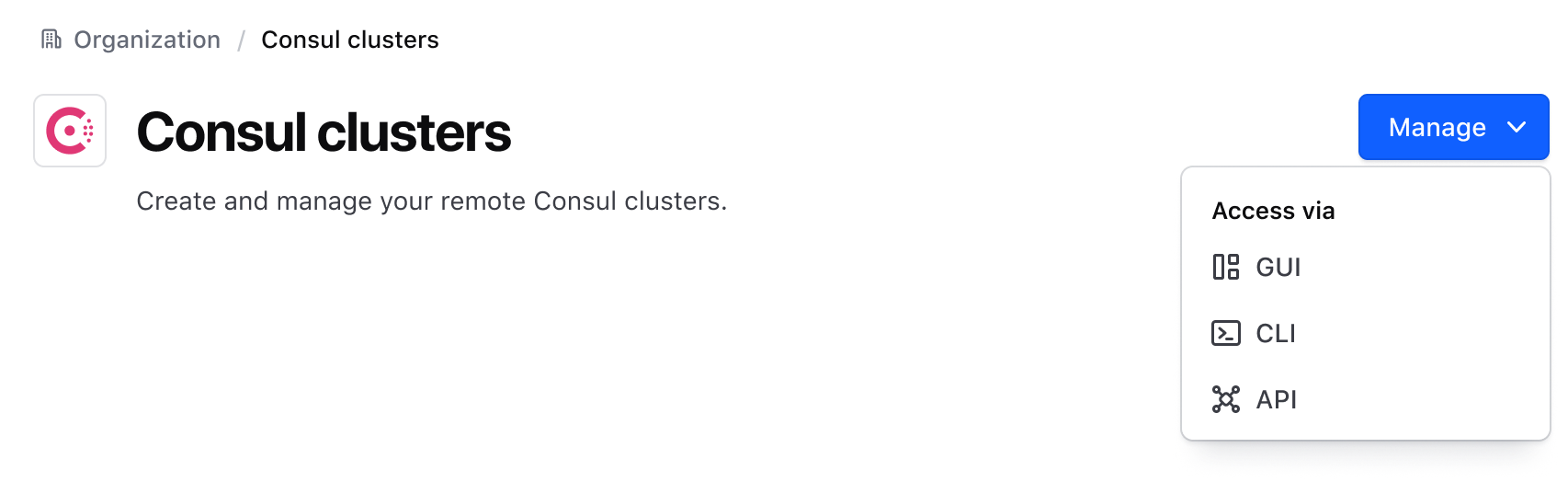

Do

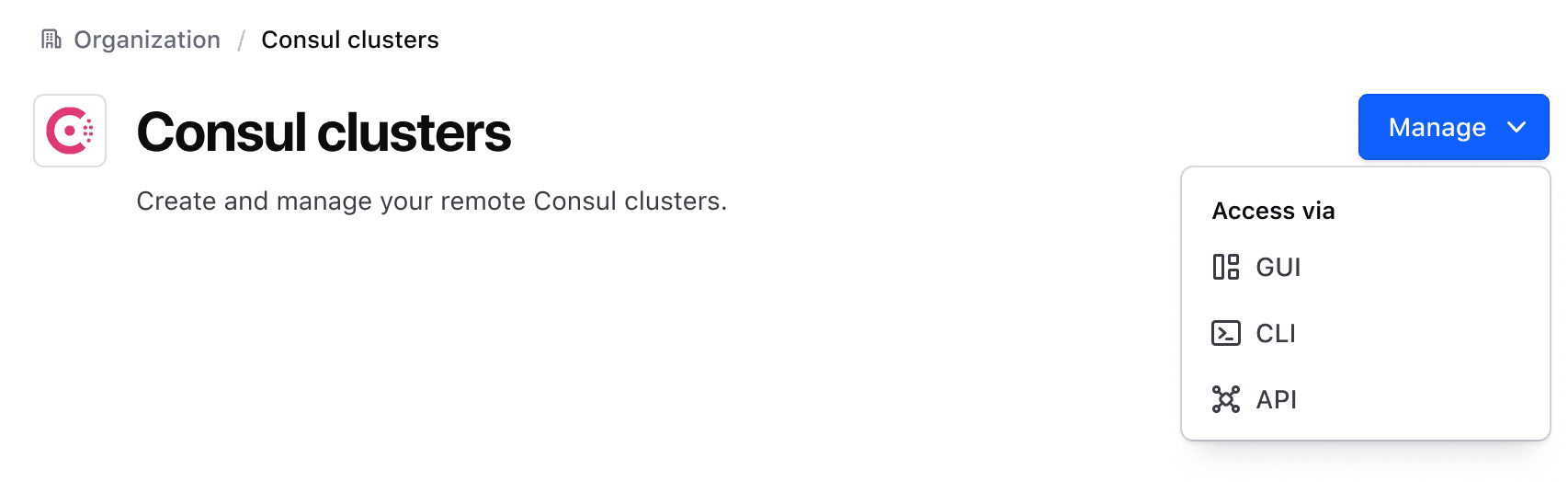

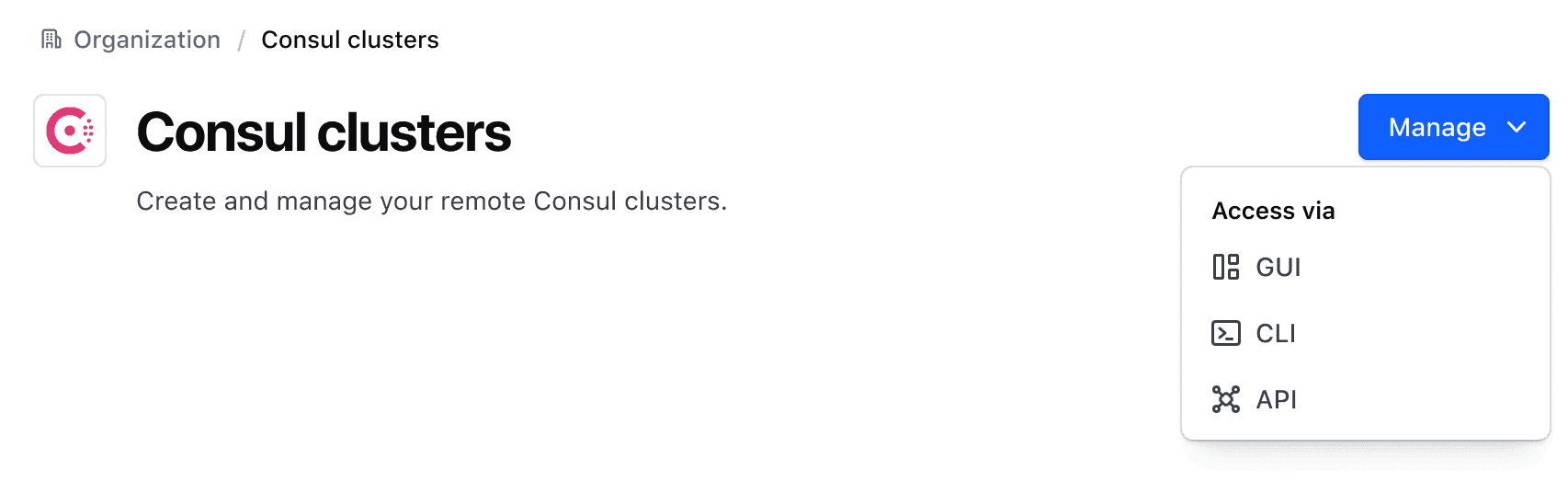

Use a primary Dropdown when the same action can be done in multiple different contexts. For example, taking the same action through a different interface or path; GUI, CLI, or API call.

Page Header primary dropdown

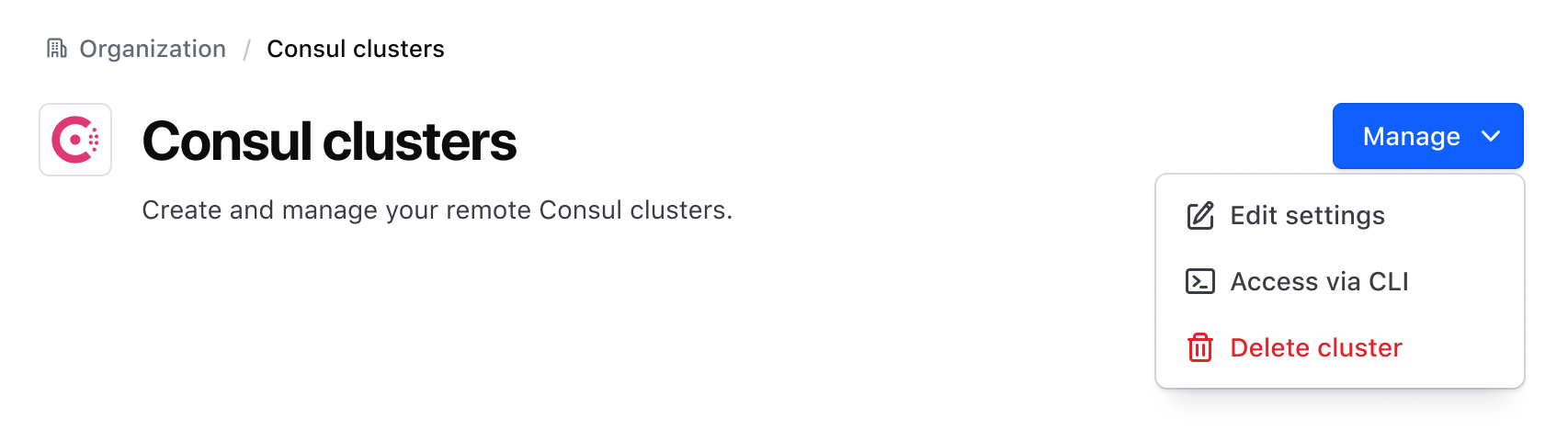

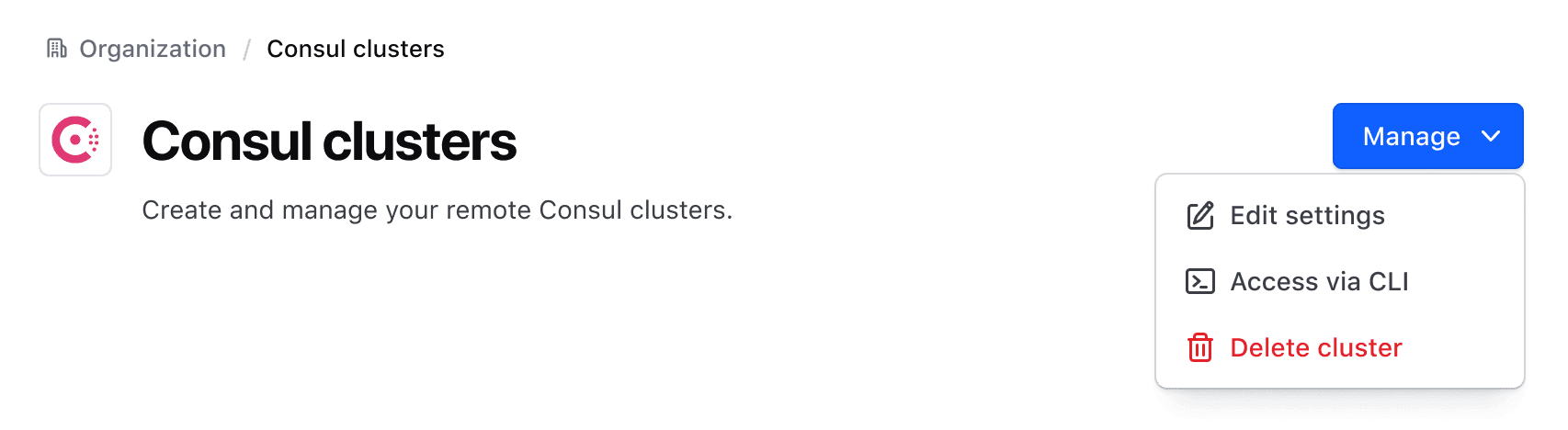

Don’t

Don’t use a primary color Dropdown when combining different, unrelated actions. Instead, use the secondary color.

Page Header primary dropdown

Action color and pairing

While the Page Header supports up to three actions in Figma, we recommend limiting the number of actions to two for most pages. These actions should generally consist of a primary action (e.g. "Create" or "Deploy") and a secondary action (e.g., "Manage").

For more details on how to combine, order, and organize buttons, refer to the Button order, organization, and alignment pattern documentation.

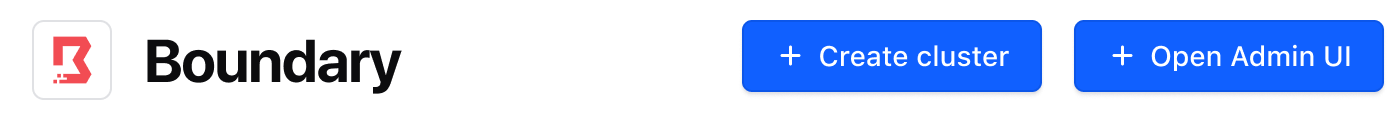

Don’t

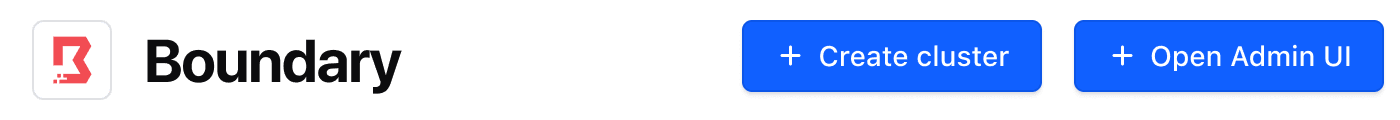

Don’t pair two primary actions in a Page Header. Instead, communicate the highest priority action for the user with a primary Button or Dropdown and other actions with a secondary Button or Dropdown.

Page Header two primary actions

Size

Size only pertains to the Figma component and accounts for smaller viewports by stacking elements. The Ember component supports a basic level of fluidity and responsiveness out of the box.

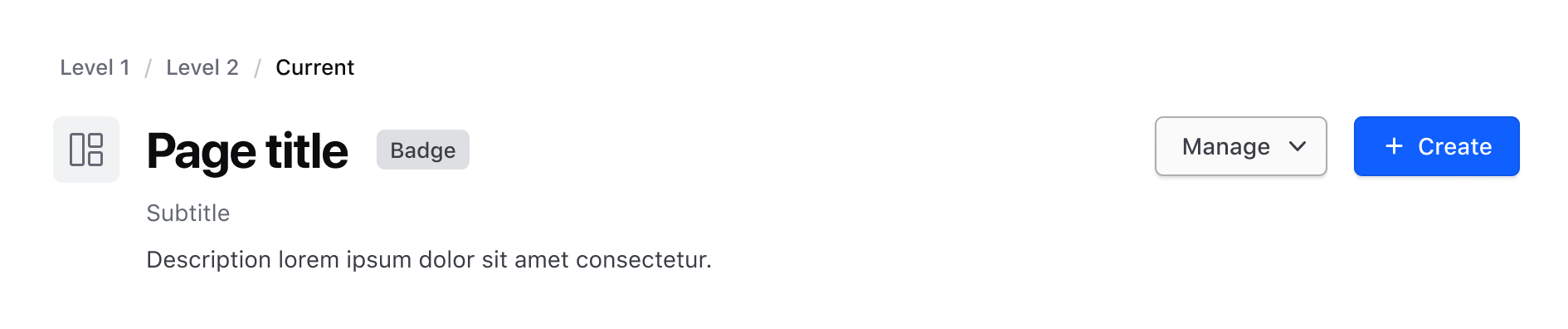

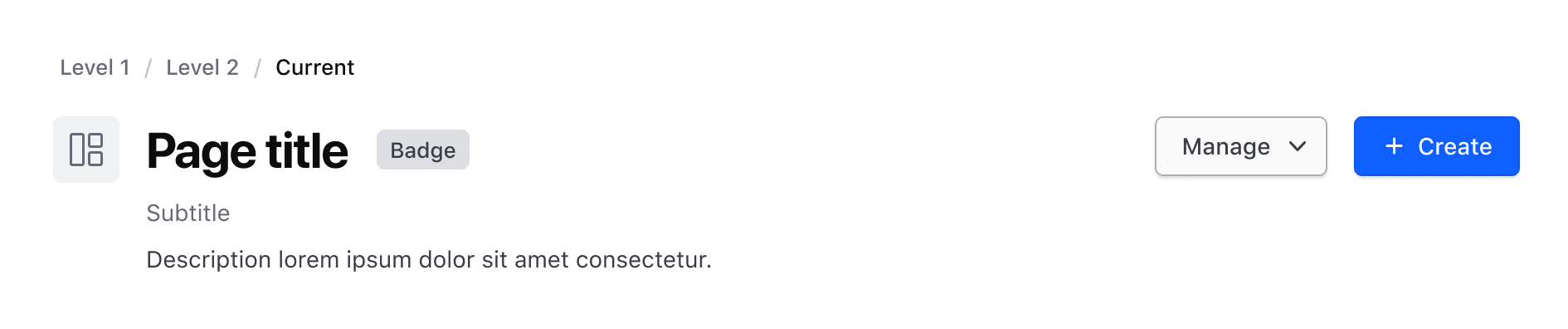

Large

Large Page Header variant

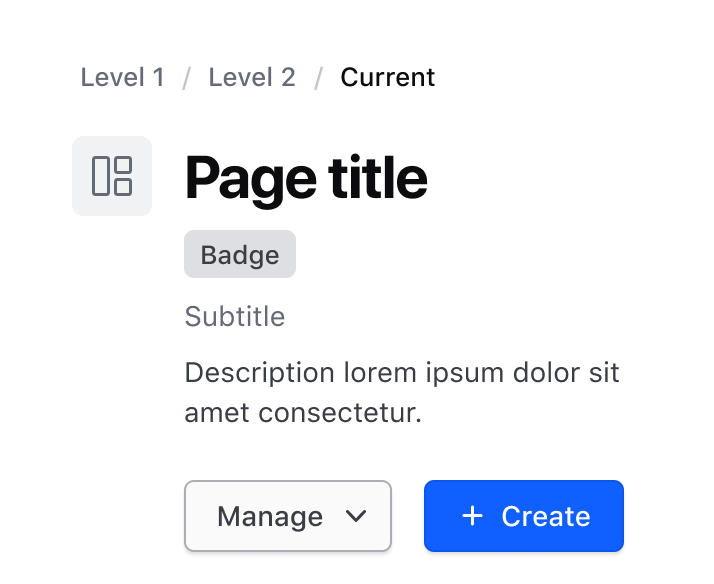

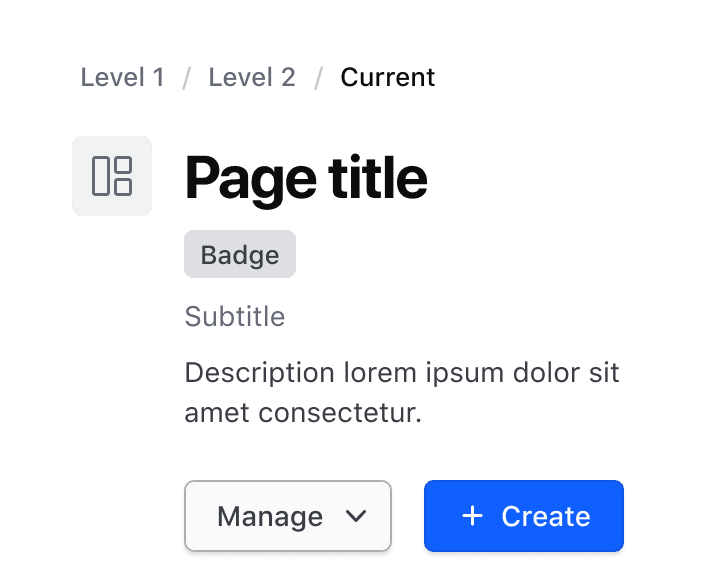

Small

Small Page Header variant

Responsiveness

The Page Header component in Figma supports two sizes; large which accounts for the majority of desktop sizes and large tablets, and small which accounts for smaller tablet and mobile devices. The core difference between each variant is the vertical stacking of elements.

The Ember component uses a variety of different methods to ensure fluidity and responsiveness:

  • By default, the component will fill the page layout it is used within. It does not have any padding or margin explicitly applied, allowing it to adapt to different layout and spacing methods.
  • The component has breakpoints by means of container queries (at 768px and one at 400px) that account for the majority of content within the component and stack elements in a single column as the container shrinks.
  • Elements displayed inline with each other (e.g., title and badges) have flex-wrap: wrap; set to wrap elements when the available space is reduced.

Additional responsive characteristics are the responsibility of the consumer and dependent on the layout and spacing methods defined at the application level.

How to use this component

A simple invocation of the component requires a contextual <PH.Title> which yields its content within an <h1>.

Page title

<Hds::PageHeader as |PH|>
  <PH.Title>Page title</PH.Title>
</Hds::PageHeader>

Contextual components

The Page Header uses a number of contextual components that either yield their content or render a specific Helios component.

The layout of this component is responsive and adjusts based on the width of its bounding container. The examples captured here may not be indicative of how the component will render within a specific application or layout.

The responsive layout is achieved using container queries, which creates a new stacking context. We recommend setting the appropriate z-index value to the Page Header (or its parent container) to make sure its content–for example a Dropdown–is not obscured by other elements on the page.

Page title

Status badge
<Hds::PageHeader as |PH|>
  <PH.Title>Page title</PH.Title>
  <PH.Breadcrumb>
    <Hds::Breadcrumb>
      <Hds::Breadcrumb::Item @text="Organization" @icon="dashboard" />
      <Hds::Breadcrumb::Item @text="Project" @icon="file-text" />
      <Hds::Breadcrumb::Item @text="Clusters" @icon="server-cluster" />
    </Hds::Breadcrumb>
  </PH.Breadcrumb>
  <PH.IconTile @icon="server-cluster" @color="consul" />
  <PH.Badges>
    <Hds::Badge @text="Status badge" @icon="award" @color="highlight" />
  </PH.Badges>
  <PH.Subtitle>Page subtitle</PH.Subtitle>
  <PH.Description>Description of the page</PH.Description>
  <PH.Actions>
    <Hds::Button
      @text="Create"
      @icon="plus"
      @iconPosition="leading"
      @color="primary"
    />
  </PH.Actions>
</Hds::PageHeader>

Custom content

Pass custom metadata to the component with a generic contextual component that yields its contents.

Page title

<Hds::PageHeader as |PH|>
  <PH.Title>Page title</PH.Title>
  <PH.IconTile @icon="folder" />
  <PH.Actions>
    <Hds::Dropdown as |D|>
      <D.ToggleButton @text="Manage" @color="secondary" />
      <D.Interactive @route="components" @text="Item One" />
      <D.Interactive @route="components" @text="Item Two" />
      <D.Interactive @route="components" @text="Item Three" />
      <D.Separator />
      <D.Interactive
        @route="components"
        @text="Delete"
        @color="critical"
        @icon="trash"
      />
    </Hds::Dropdown>
  </PH.Actions>
  <PH.Generic>
    <Doc::Placeholder
      @text="generic metadata"
      @height="36"
      @width="350"
      @background="#eee"
    />
  </PH.Generic>
</Hds::PageHeader>

Component API

…attributes
This component supports use of ...attributes.

Contextual components

[PH].Title

The PageHeader::Title component, yielded as contextual component.

yield
Elements passed as children are yielded as inner content of an <h1> HTML element.
close function
Function to programmatically close the Modal. If an onClose callback function is provided, it will be invoked when the Modal is closed.
…attributes
This component supports use of ...attributes.

[PH].Breadcrumb

A generic container, yielded as contextual component.

Conventionally used to add a Breadcrumb component.

yield
Elements passed as children are yielded as inner content of the "breadcrumb" block.

[PH].IconTile

A yielded HDS::IconTile component.

It exposes the same API as the IconTile component, apart from the @size argument, which is pre-defined to be medium.

[PH].Badges

The PageHeader::Badges component, yielded as contextual component.

Intended to indicate status via one or more Badge components.

yield
Elements passed as children are yielded as inner content of the "badges" block, as a list of badges.
…attributes
This component supports use of ...attributes.

[PH].Subtitle

The PageHeader::Subtitle component, yielded as contextual component.

yield
Elements passed as children are yielded as inner content of the "metadata/subtitle" block.
The content can be a simple string or a more complex/structured one. The content inherits the text style.
…attributes
This component supports use of ...attributes.

[PH].Description

The PageHeader::Description component, yielded as contextual component.

yield
Elements passed as children are yielded as inner content of the "metadata/description" block.
The content can be a simple string or a more complex/structured one. The content inherits the text style.
…attributes
This component supports use of ...attributes.

[PH].Generic

A generic container, yielded as contextual component.

yield
Elements passed as children are yielded as inner content of the "metadata" block, after the "subtitle" and "description".
The content can be a simple string or a more complex/structured one.
The content does not inherit any text style.

[PH].Actions

The PageHeader::Actions component, yielded as contextual component.

Intended for actions and buttons pertaining to the main page.

yield
Elements passed as children are yielded as inner content of the "actions" block
…attributes
This component supports use of ...attributes.

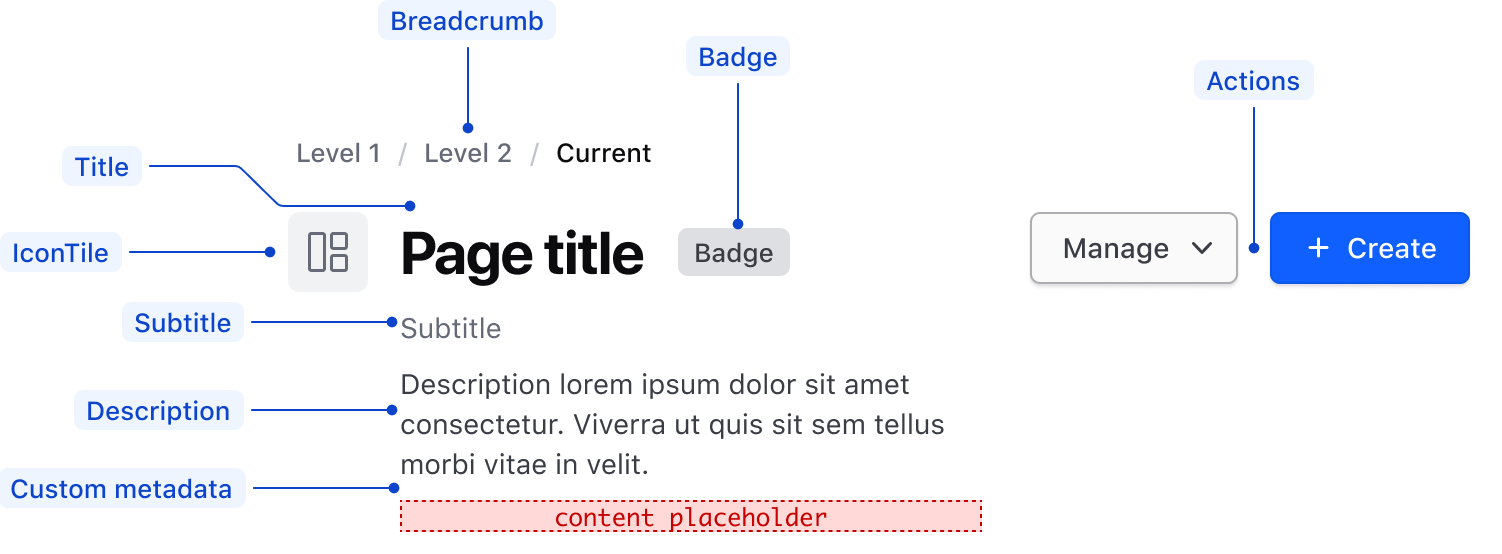

Anatomy

Anatomy of pageHeader

Element Usage
Title Required
Breadcrumb Optional, but recommended for any page except top-level landing pages
IconTile Optional
Badges Optional
Subtitle Optional
Description Optional
Custom metadata Optional
Actions Optional, supports either one, two, or three actions

Conformance rating

Conformant

When used as recommended, there should not be any WCAG conformance issues with this component.

Applicable WCAG Success Criteria

All of the success criteria that applied to the components used in building this component will still apply and should be listed on the component’s accessibility documentation. Additionally, a few specifically relevant (potential) additions:
