Code Block

The Code Block is used to display, format, and highlight the syntax of code snippets.

Usage

When to use

• When displaying code examples and longer snippets of code that benefit from syntax highlighting.

When not to use

• As a full-blown code editor.
• As an embedded terminal or terminal emulator.

When to use a Code Block vs. a Copy Snippet

There is some overlap in the copying functionality of the Copy Snippet and the Code Block. Which to use generally comes down to the complexity of the code/value displayed within the component, and whether the user benefits from seeing the larger context of the code example.

Use a Code Block:

• If viewing or displaying code is the primary purpose, and copying the code is secondary.
• If the example consists of a command, e.g., a curl and bash script. These are oftentimes on a single line, but consist of multiple commands and functions.

Use a Copy Snippet:

• If copying the code is the primary purpose, and viewing the code is secondary.
• If allowing the user to copy an API key or other single value or string.
• If seeing the value in a larger context of where it's expected to be pasted into isn’t necessary.

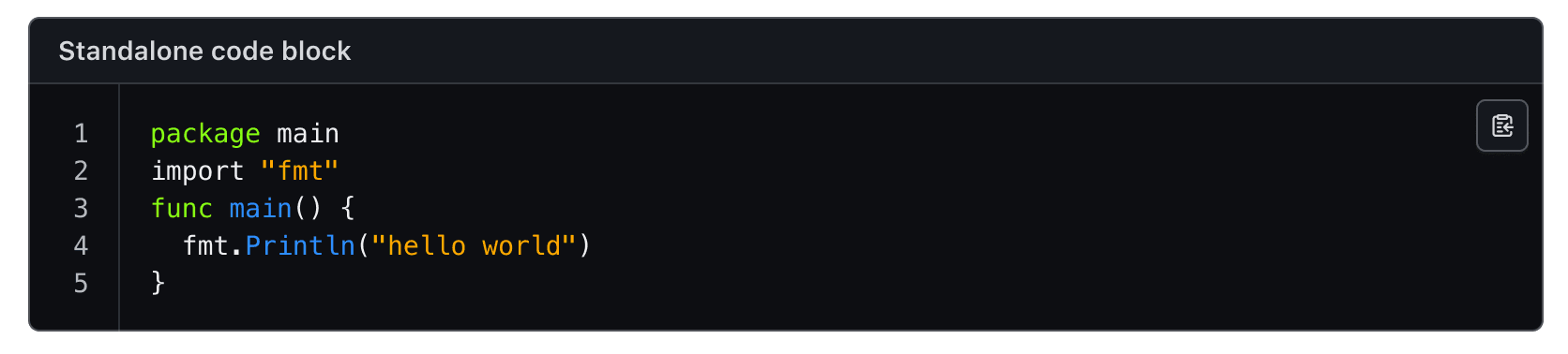

Standalone

The isStandalone property increases the portability of the Code Block to ensure that it can be used in different contexts. For example, a common use case of the Code Block is in a "standalone" context, which can be part of a form, multi-step process, and is generally a part of the normal layout flow.

Sometimes it may be necessary to use the Code Block in a more dense layout or nested within another component. In this circumstance, setting isStandalone to false ensures that the Code Block fits alongside other elements, in a split view, or as part of a larger layout mechanism.

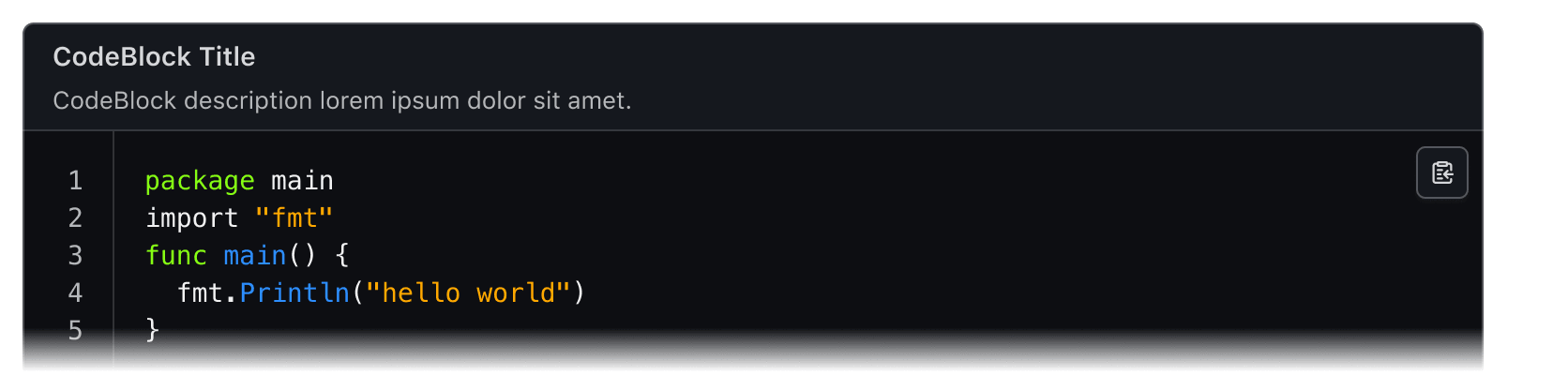

Header

Use a title and/or description in the header to provide additional information, instructions, or to label a Code Block. Both of these properties are optional, but including them can help to provide additional context about a specific block of code.

When not to use a header

There can be an overlap between content that you may choose to include in the header as a title or description, and content that is part of the normal layout flow in a headline or paragraph. If it is necessary to elevate this content in the hierarchy of the page, we recommend including it in the normal layout flow, rather than as a title or description within the Code Block.

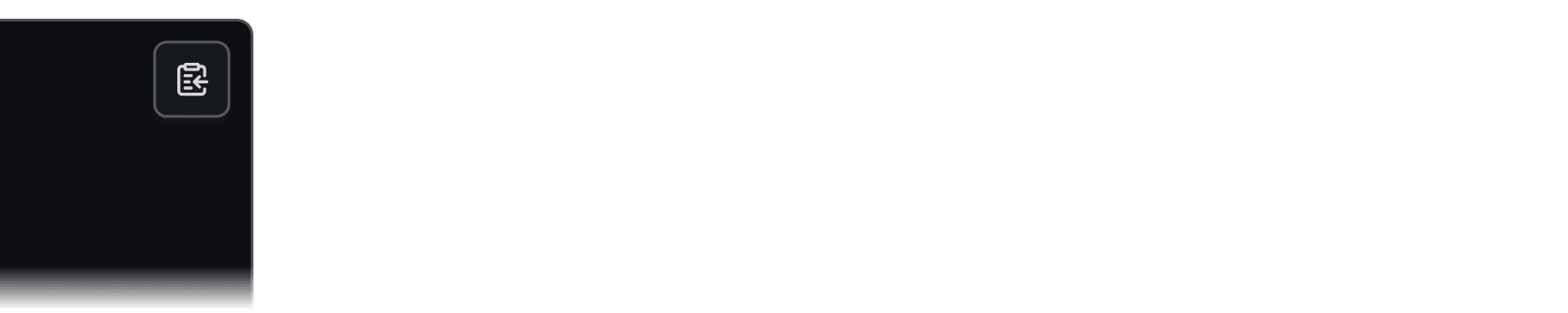

CopyButton

Use a CopyButton within the Code Block to make copying the snippet a single action. More details can be found in the CopyButton guidelines.

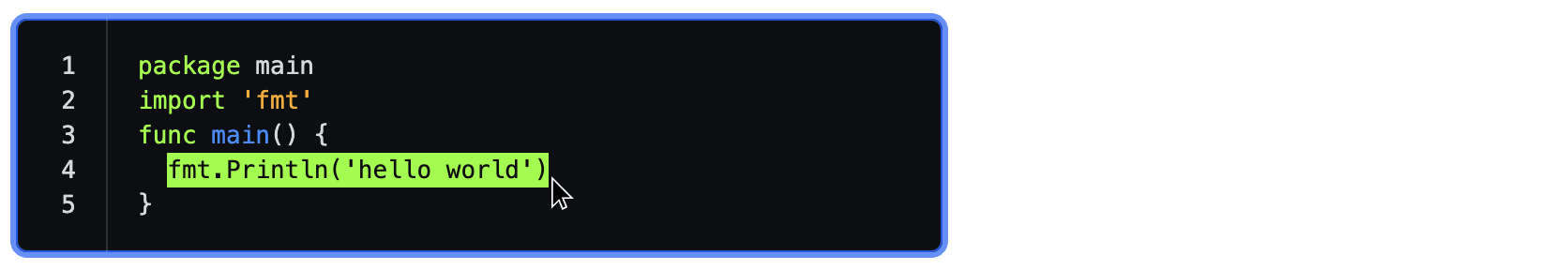

Line selection

If a user needs to copy only a portion of the Code Block, the relevant portion can be selected with a cursor and copied via the keyboard or mouse.

Line numbers

Line numbers are displayed by default and can make longer blocks of code and snippets easier to parse. This is especially true in the case of logs and long configuration files that may have a higher degree of complexity.

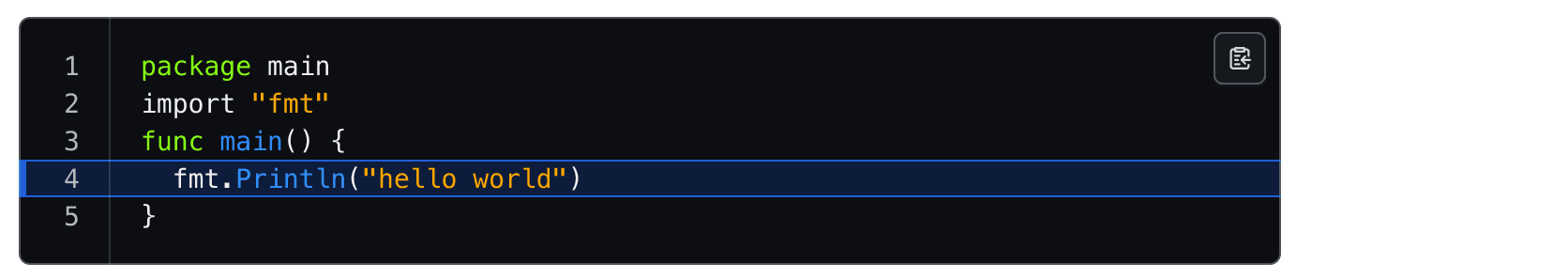

Line highlighting

Use line highlighting to target and call attention to specific lines or multiple lines within a block of code.

Language

Language determines how syntax highlighting is applied and formatted within the block but is handled a bit differently between the Ember and Figma components.

The Ember component uses Prism.js to handle syntax highlighting and comes with a pre-defined set of languages.

In Figma we provide a handful of example languages that are intended to be representative of the end result in production. Syntax highlighting in Figma is a non-trivial process and requires the manual application of color styles to each "type" of code. Despite this, creating a custom code snippet with the Code Block is supported by typing/pasting into the text layer, but syntax highlighting will not be automatically applied.

Applying syntax highlighting

If you wish to create custom examples using the Code Block, we publish all of the relevant syntax highlighting styles in the HDS Foundations library. However, due to the number of languages supported by the component, the color styles use a generic naming schema (e.g., cyan, red, purple) to remain as agnostic as possible when being applied to different languages.

For more details around syntax visit the specifications.

How to use this component

The basic invocation requires a @value argument. The component encodes this argument before displaying it.

<Hds::CodeBlock
  @value="aws ec2 --region us-west-1 accept-vpc-peering-connection"
/>

Title and description

Optionally, you can pass a title and/or a description.

<Hds::CodeBlock
  @language="bash"
  @value="aws ec2 --region us-west-1 accept-vpc-peering-connection"
as |CB|>
  <CB.Title>
    CodeBlock title
  </CB.Title>
  <CB.Description>
    CodeBlock description
  </CB.Description>
</Hds::CodeBlock>

Language

The language argument sets the syntax highlighting used. We only support the following languages: bash, go, hcl, json, log, ruby, shell-session, and yaml. If you need additional languages contact the Design Systems Team

<Hds::CodeBlock
  @language="go"
  @value="package main
import fmt
func main() {
  fmt.Println(helloWorld)
}"
/>

Copy button

Set hasCopyButton to true to display a button for users to copy CodeBlock content to their computer clipboard.

<Hds::CodeBlock
  @language="javascript"
  @hasCopyButton={{true}}
  @value="let codeLang=`JavaScript`;
console.log(`I am ${codeLang} code`);"
/>

Line numbers

Line numbers are displayed by default. Set hasLineNumbers to false to hide them.

<Hds::CodeBlock
  @language="javascript"
  @hasLineNumbers={{false}}
  @value="let codeLang=`JavaScript`;
console.log(`I am ${codeLang} code`);"
/>

Line wrapping

By default, long lines of code will overflow the CodeBlock container requiring users to scroll to view the full content. Setting hasLineWrapping to true will wrap long lines of code instead.

<Hds::CodeBlock
  @language="javascript"
  @hasLineWrapping={{true}}
  @value="console.log(`I am JavaScript code`, `Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam`);"
/>

Highlight lines

Highlight either individual code lines or a range of code lines. (Examples: 2, 4, 6-10)

<Hds::CodeBlock
  @language="javascript"
  @highlightLines={{"2, 4"}}
  @value="import Application from `@ember/application`;
import Resolver from `ember-resolver`;
import loadInitializers from `ember-load-initializers`;
import config from `dummy/config/environment`;

export default class App extends Application {
  modulePrefix = config.modulePrefix;
  podModulePrefix = config.podModulePrefix;
  Resolver = Resolver;
}

loadInitializers(App, config.modulePrefix);"
/>

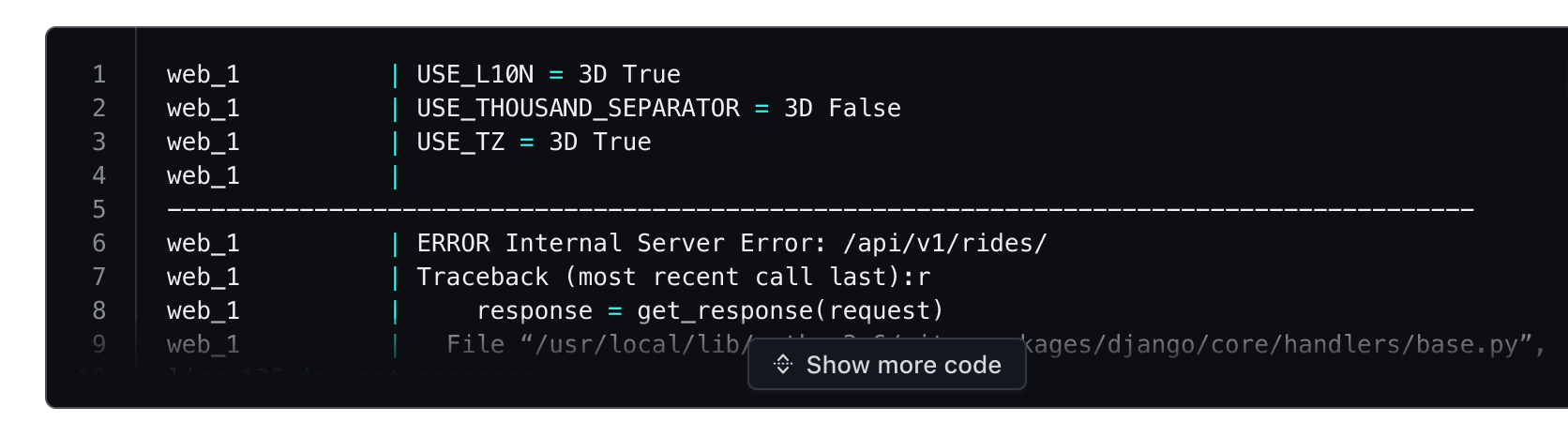

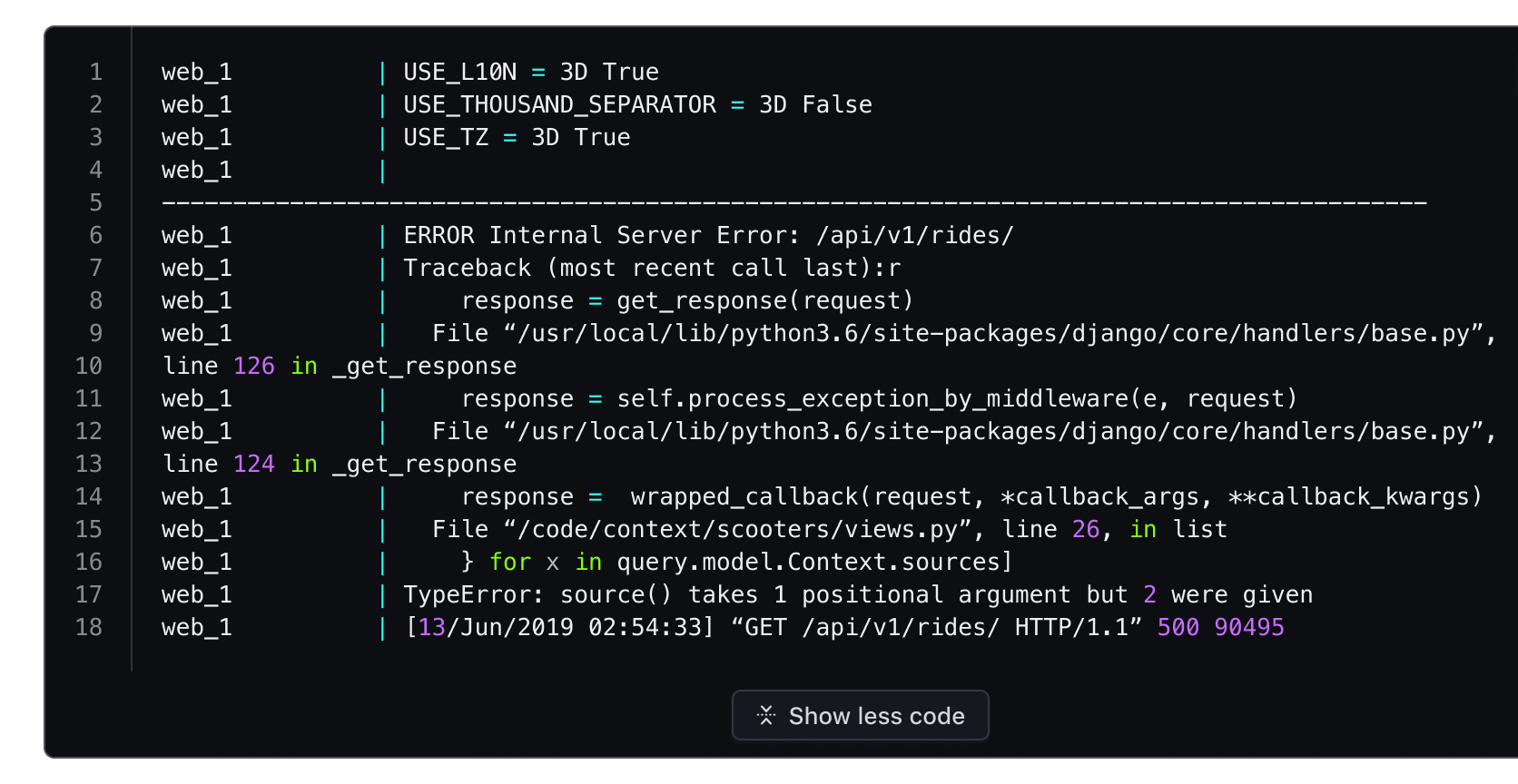

Limit height

Code content uses auto height by default but you can opt to set a maxHeight value to save space. Vertical scrolling is enabled as part of this feature allowing users to scroll vertically to view the overflowing content.

<Hds::CodeBlock
  @language="javascript"
  @maxHeight="105px"
  @value="import Application from `@ember/application`;
import Resolver from `ember-resolver`;
import loadInitializers from `ember-load-initializers`;
import config from `dummy/config/environment`;

export default class App extends Application {
  modulePrefix = config.modulePrefix;
  podModulePrefix = config.podModulePrefix;
  Resolver = Resolver;
}

loadInitializers(App, config.modulePrefix);"
as |CB|>
  <CB.Title>
    CodeBlock title
  </CB.Title>
  <CB.Description>
    CodeBlock description
  </CB.Description>
</Hds::CodeBlock>

Component API

This component uses prism.js under the hood.

Contextual components

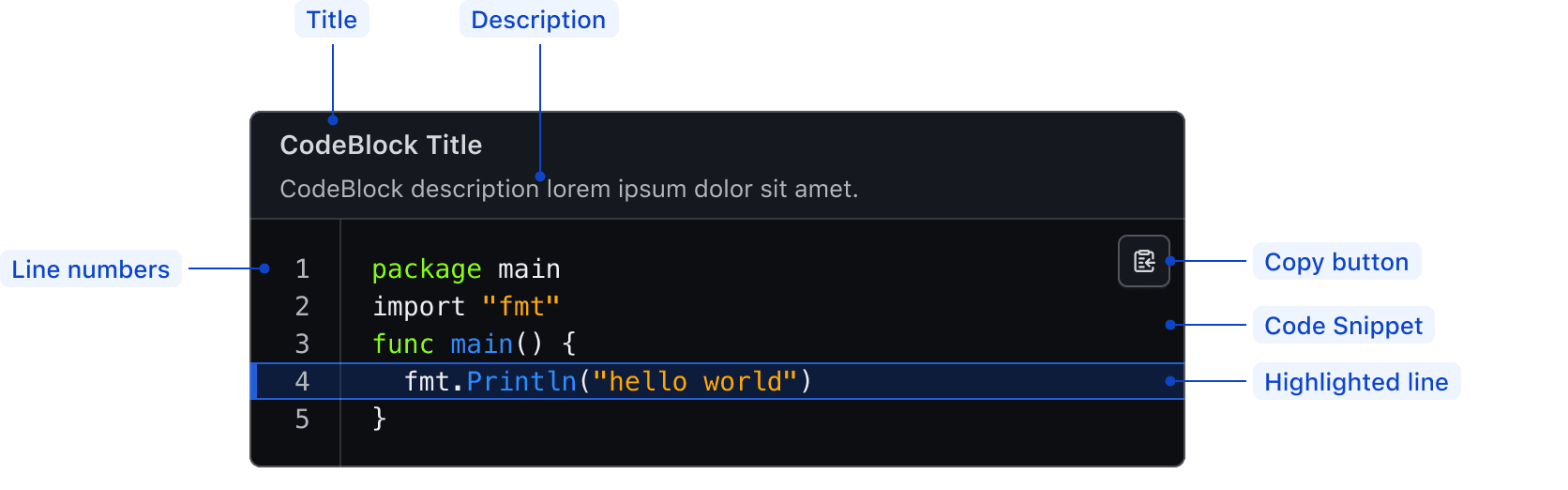

Anatomy

Syntax highlighting

To aid in understanding how the highlighting theme is applied via Prism's tokens, we've provided a high-level, non-exhaustive list of token names and how they might be applied depending on the syntax.

Working directly with an engineering partner can reveal exactly how a snippet will render in the component and should be the first course of action when creating custom snippets. Understanding Prism's token hierarchy can also be helpful when creating examples.

If you have questions or need assistance creating custom examples, don’t hesitate to reach out the the HDS team for support.

States

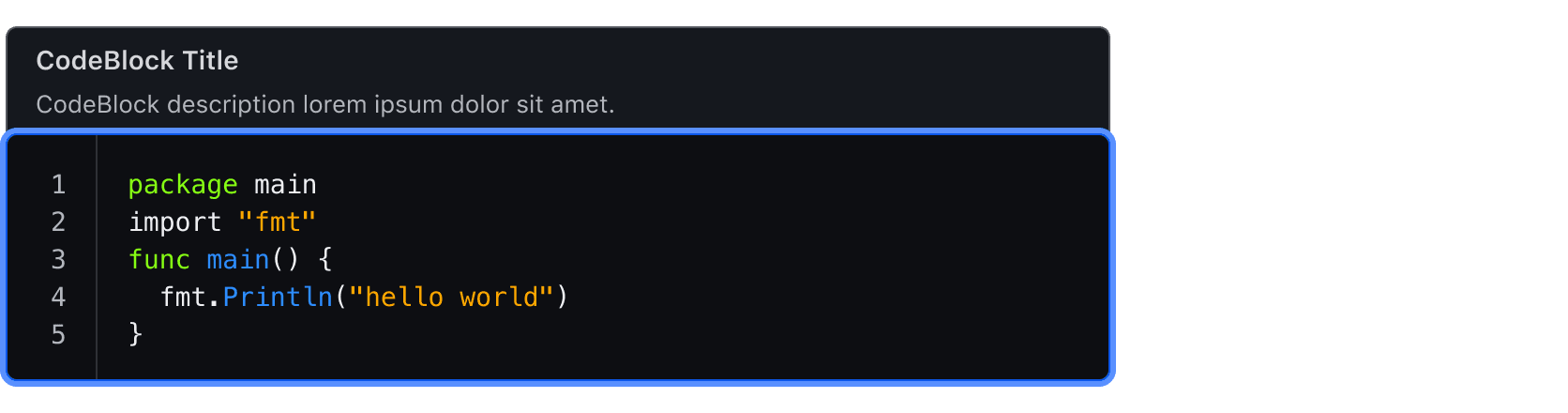

Focus with header content

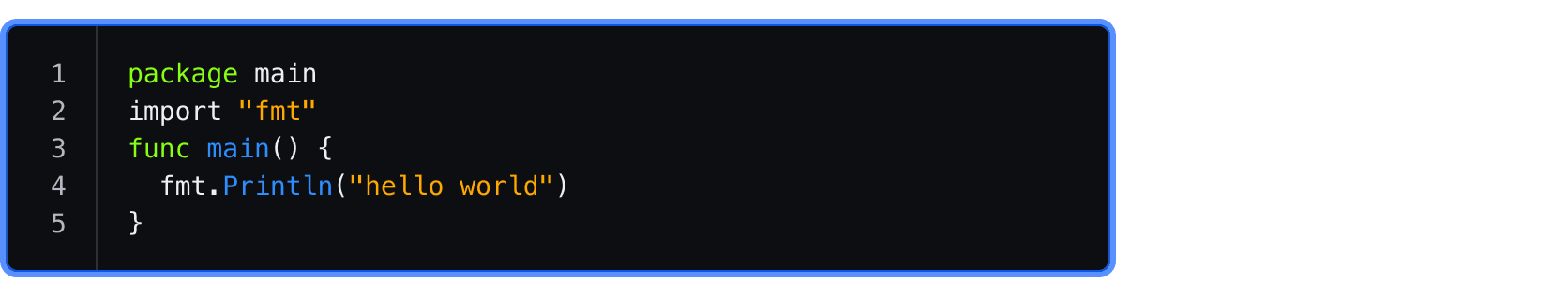

Focus without header content

Conformance rating

When used as recommended, there should not be any WCAG conformance issues with this component.

Applicable WCAG Success Criteria

This section is for reference only. This component intends to conform to the following WCAG Success Criteria:

Support

If any accessibility issues have been found within this component, let us know by submitting an issue.
