An interactive element that initiates an action or event, such as a form submission.

Usage

When to use

When not to use

Sizes

Medium is the preferred size, but use a Button size that best fits the UI (e.g., don’t use a large button in a table).

Full-width buttons fill 100% of the parent container. Use full-width Buttons sparingly.

Types

Primary

Use Primary for the most important action on a page, e.g., for submitting a form. Avoid using multiple Primary buttons on a single page.

Secondary

Use Secondary for less important actions or when multiple actions of the same importance are needed.

For example:

  • for Cancel next to a Submit button.
  • when needing to let the user do things like Download or Generate a report but neither are the primary focus or goal of the page.

Critical

Use Critical when users take an action that is potentially dangerous. For example, when deleting a cluster.

Tertiary

Use Tertiary for low-priority actions when lighter visual weight is required.

For example:

  • for actions on a page that require even less visual weight or priority than a secondary button (our default for less important actions).
  • for controlling form fields (such as adding an additional form field).

Icon position

Buttons are provided with flexible icon use; allowing for leading, trailing, or icon only buttons. Use icons intentionally and only when they provide the user with extra value. Do not create buttons with both leading and trailing icons. Tertiary buttons are required to have either a leading or trailing icon layout to be accessible.

Looking for Dropdowns?

Buttons used for a Dropdown (with the chevron icon) can be found in Dropdown.

Leading

In most cases, use leading icons. Choose icons that add meaning and clarity to the action described in the button’s text.

Do

Use the leading position when creating or adding a new object.

Trailing

Consider trailing icons when guiding the user forward through the product.

Use chevron-right to indicate moving forward in a multi-step flow.

Use arrow-right when using the Button for internal links. In most cases, consider using a Standalone Link instead. For more details, please refer to the code documentation.

Continue with HCP account

Use external-link when using the Button for external links. In most cases, consider using a Standalone Link instead. For more details, please refer to the code documentation.

Authenticate with GitHub

The Button component accepts an @href or @route argument, which results in a link with the visual appearance of a button. While in general, we advise against this approach because it can cause confusion for keyboard-only users, there are a few instances where this may be appropriate for improved visual hierarchy, such as:

For links that require more prominence and CTAs (calls-to-action).

Sign up for free

For links that are part of an inverse button group.

Cancel

Learn more about how semantic use helps make our products more conformant.

Button set

ButtonSet is a layout component that provides consistent spacing between multiple Buttons. Refer to the ButtonSet documentation to learn more. ButtonSet is only available in code.

More detailed examples and guidance on button organization can be found in the button organization pattern documentation.

Content

  • Text should be short and to the point (~25 characters). Buttons should not consist of full sentences, but should provide enough context to be useful.
  • Language should be used consistently within each product (e.g., when using "Edit" on one page, use that same convention throughout the rest of the application, not "Change").

Due to differences in text rendering between Figma and web browsers, the Button Ember component uses font-weight 400 vs. the Figma component which uses font-weight 500.

How to use this component

The basic invocation requires text to be passed:

<Hds::Button @text="Basic button" />

Add an icon

To add an icon to your Button, give the @icon any icon name:

<Hds::Button @text="Create cluster" @icon="plus" />

Icon position

By default, if you define an icon, it is placed in the leading position (before the text). If you need to position the icon in the trailing position (after the text), define @iconPosition:

<Hds::Button @text="Next step" @icon="arrow-right" @iconPosition="trailing" />

Icon-only Button

To add a tooltip to an icon-only Button, here’s an example of how to do it in an accessible way: Accessible Button Tooltip Pattern.

If you would like to create an icon-only Button, set @isIconOnly to true. Note that you still have to define the @text value; it will be used as the aria-label attribute value on the Button element.

<Hds::Button @text="Create cluster" @icon="plus" @isIconOnly={{true}} />

Color

There are four available colors for the Button: primary, secondary, tertiary, and critical. The default is primary. To use a different color, declare another value for @color:

<Hds::Button @text="Secondary" @color="secondary" />
<Hds::Button @text="Tertiary" @color="tertiary" @icon="bulb" />
<Hds::Button @text="Critical" @color="critical" />

Size

There are three sizes available for the Button: small, medium, and large. The default is medium. To use a different size, declare a value for @size:

<Hds::Button @text="Small button" @size="small" />
<Hds::Button @text="Large button" @size="large" />

Full-width

This indicates that the Button should take up the full-width of the parent container. It’s set to false by default.

<Hds::Button @text="Full width button" @isFullWidth={{true}} />

Layout

To change the default block layout to inline, set @isInline to true. This can be useful in contexts where the Button needs to be inline, for example to inherit the alignment from a parent.

<div class="doc-button-mock-text-align-right">
  <Hds::Button @text="inline layout" @isInline={{true}} />
</div>

Type

This is the native HTML button attribute, type. There are three possible values: button, submit, and reset. The default type for the Button is button. To submit form data to the server, set type to submit.

<Hds::Button @text="Submit" type="submit" />

Actions

Define the action in your route or controller, and add it to the component invocation in your template:

Read the Ember.js guides for more information: Patterns for Actions .

<Hds::Button @text="Alert me" {{on "click" this.alertOnClick}} />

You can generate a link with the visual appearance of a button, by passing an @href or a @route argument to the component.

If you’re passing an @href or a @route argument to the component, this will generate an <a> link, not a <button>. In this case, no type is needed.

The Hds::Button component uses the generic Hds::Interactive component. For more details about how this utility component works, please refer to its documentation page.

With @href

If you pass an @href argument, an <a> link will be generated.

target=“_blank” and rel=“noopener noreferrer” attributes are applied by default. This is the most common case, as internal links are generally handled using a @route argument but can be overridden. If the href points to an internal link, or uses a different protocol (e.g., "mailto" of "ftp"), pass @isHrefExternal=false and it will not add the target and rel attributes.

<Hds::Button @text="Visit website" @icon="external-link" @iconPosition="trailing" @href="https://hashicorp.com" />

With @route

If you pass a @route argument, an <a> link will be generated using a <LinkTo> Ember component. All of the standard arguments for the <LinkTo/LinkToExternal> components are supported (eg. models/model/query/current-when/replace).

If the route is external to your current engine, you have to pass @isRouteExternal=true so it will use <LinkToExternal> instead of <LinkTo> for the @route. For more details, see the Hds::Interactive component.

<Hds::Button @text="Back to homepage" @icon="arrow-left" @route="index" />

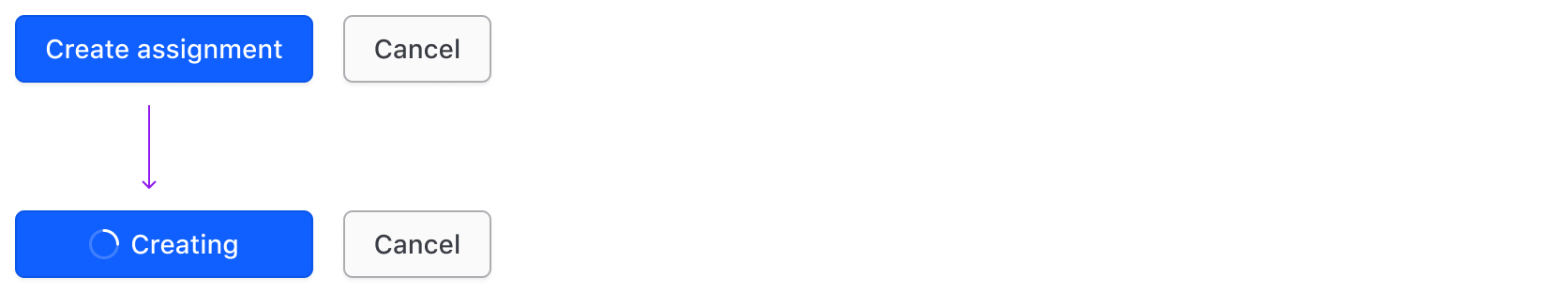

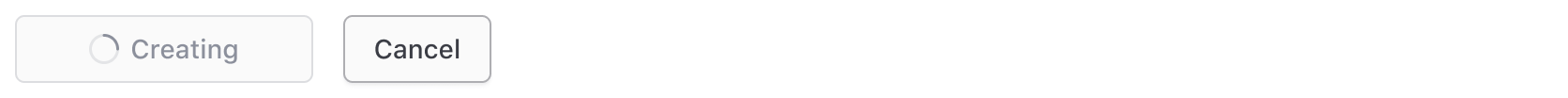

Loading state

If the button needs to toggle between an "idle" and a "loading" state, we suggest applying a width to it (via inline style or CSS class) to prevent the button from resizing on click (and potentially causing layout shifts):

While applying an explicit width to the button is possible in general, we suggest limiting the application of this override only to this specific use case and letting the button resize accordingly to its content.

<Hds::Button
  {{style width="7.5rem"}}
  @icon={{if this.isLoading "loading"}}
  @text={{if this.isLoading "Loading" "Save"}}
  {{on "click" this.toggleIsLoading}}
/>

Disabled Buttons

To disable a Button, manually add the native disabled attribute:

Links cannot use the disabled attribute (per HTML specification); even if you were to intercept the event, they are still subject to color-contrast conformance requirements.

<Hds::Button @text="Alert me" disabled {{on "click" this.alertOnClick}} />

Component API

size enum
  • small
  • medium (default)
  • large
color enum
  • primary (default)
  • secondary
  • tertiary
  • critical
text string required
Text of the button or value of aria-label if isIconOnly is set to true. If no text value is defined an error will be thrown.
icon string
Used to show an icon. Any icon name is accepted.

Tertiary buttons have transparent backgrounds, and interactive elements must communicate interactivity with more than just color. Therefore, a leading or trailing icon is required when using the tertiary color. WCAG 2.1 Criterion 1.4.1: Use of Color (Level A)
iconPosition enum
  • leading (default)
  • trailing
Positions the icon before or after the text.
isIconOnly boolean
  • false (default)
Indicates if the button will only contain an icon. An internal check is in place to ensure that accessible text is still applied to the component.
isFullWidth boolean
  • false (default)
Indicates that a button should take up the full width of the parent container.
href
URL parameter that is passed down to the <a> element.
isHrefExternal boolean
  • false (default)
Controls if the <a> link is external and so for security reasons we need to add the target="_blank" and rel="noopener noreferrer" attributes to it.
isInline boolean
  • false (default)
If an @isInline parameter is provided, then the element will be displayed as inline-block (useful to achieve specific layouts). Otherwise, it will have a block layout.
route/models/model/query/current-when/replace
Parameters that are passed down as arguments to the <LinkTo/LinkToExternal> component.
isRouteExternal boolean
  • false (default)
Controls if the <LinkTo> is external to the Ember engine (more details here) in which case it will use a <LinkToExternal> instead of a simple <LinkTo> for the @route.
…attributes
This component supports use of ...attributes.

Anatomy

Button anatomy

Element Usage
Text* Optional
Container Required
Leading Icon* Optional
Focus Ring Focus state only
Trailing Icon* Optional

* One of these must be present.

States

Example of button states

Disabled buttons should be used sparingly and with intention. Acceptable use cases for disabled buttons include:

  • Incomplete flows (e.g., user has not yet completed a required action needed to move forward).
  • Permissions restriction.

Conformance rating

Conformant

When used as recommended, there should not be any WCAG conformance issues with this component.

While buttons and links have been used interchangeably across the internet for years, understanding the difference between these two and striving for the semantic use of these elements can help make our products more conformant.

How to know which to use

  • If it goes to a URL, use a Link.
  • If it triggers an action (toggles a state, submits a form, etc.), use a Button.
  • When submitting a form and redirecting the user to a different URL, use a Button.

Why strive for semantic use

Users with assistive technology (AT) or keyboard-only users rely on the semantic use of Buttons and Links to determine how to activate the element. Buttons are activated with the Enter/Return key or the Spacebar key, while Links can only be activated with the Enter/Return key.

Applicable WCAG Success Criteria

This section is for reference only. This component intends to conform to the following WCAG Success Criteria:

  • 1.4.1 Use of Color (Level A):
    Color is not used as the only visual means of conveying information, indicating an action, prompting a response, or distinguishing a visual element.
  • 1.4.10 Reflow (Level AA):
    Content can be presented without loss of information or functionality, and without requiring scrolling in two dimensions.
  • 1.4.11 Non-text Contrast (Level AA):
    The visual presentation of the following have a contrast ratio of at least 3:1 against adjacent color(s): user interface components; graphical objects.
  • 1.4.12 Text Spacing (Level AA):
    No loss of content or functionality occurs by setting all of the following and by changing no other style property: line height set to 1.5; spacing following paragraphs set to at least 2x the font size; letter-spacing set at least 0.12x of the font size, word spacing set to at least 0.16 times the font size.
  • 1.4.3 Minimum Contrast (Level AA):
    The visual presentation of text and images of text has a contrast ratio of at least 4.5:1
  • 1.4.4 Resize Text (Level AA):
    Except for captions and images of text, text can be resized without assistive technology up to 200 percent without loss of content or functionality.
  • 2.1.1 Keyboard (Level A):
    All functionality of the content is operable through a keyboard interface.
  • 2.4.7 Focus Visible (Level AA):
    Any keyboard operable user interface has a mode of operation where the keyboard focus indicator is visible.
  • 4.1.2 Name, Role, Value (Level A):
    For all user interface components, the name and role can be programmatically determined; states, properties, and values that can be set by the user can be programmatically set; and notification of changes to these items is available to user agents, including assistive technologies.


Support

If any accessibility issues have been found within this component, let us know by submitting an issue.
